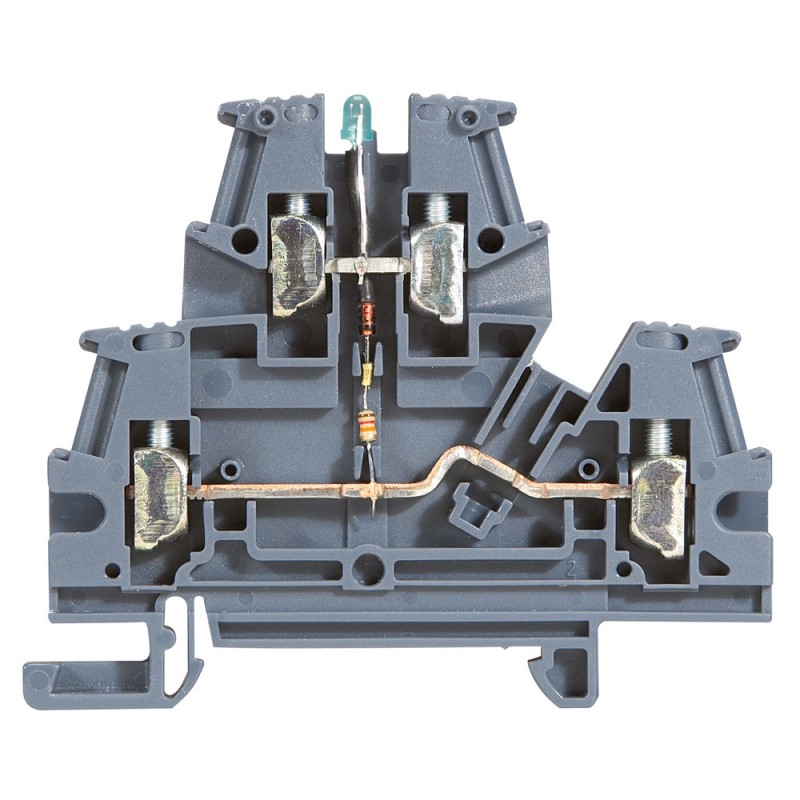

037156 LEGRAND BOR. VIKING3 2 LED FLOOR STEP 6
037156
LEGRAND
25
BOR. VIKING3 2 LED FLOOR STEP 6
Terminal block viking 3 - screw- function bloc - 1 connect on 2 levels -with LED
Viking 3 terminal block with screw - 4² - 6 step
Terminal blocks > Feed-through terminal block
VIKING TERMINALS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)60
- Volume (dm3)2.094
- Weight (g)1 085.00
2 connections on 2 levels - with LED
- Voltage presence indicator (12/24V= and ~)
- Colour : Grey
- Nominal cross-section : 4 mm²
- Capacity – Rigid wire : 0.25 to 6 mm²
- Capacity – Flexible wire with or without ferrules : 0.25 to 4 mm²
- Pitch : 6 mm
- Used to make the electrical connection between 2 flexible copper wires with or without ferrules or 2 rigid copper wires
- 2 areas for automatic insertion bridging combs up to 8 pitch (upper level only for multi-level blocks)
- For rails depth 15 mm, EN 60715 depth 7.5 mm and 15 mm
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 2 |
| Connectable conductor cross section solid-core (EF007337) | 0.25 mm² |
| Internally connected stages (EF002661) | Yes |
| Height (EF000040) | 62.5 mm |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.25 mm² |
| Explosion-tested version 'Ex e' (EF008498) | No |
| Connectable conductor cross section multi-wired (EF007343) | 0.25 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 32 A |
| Closing plate required (EF002525) | Yes |
| Depth (EF000049) | 75 mm |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Colour (EF000007) | Grey |
| Rated voltage (EF000228) | 24 V |
| Width (EF000008) | 6 mm |
| Number of levels (EF002659) | 2 |
| Type of electrical connection 2 (EF002527) | Screw connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 037156 EN_037156.pdf | 139 Kbytes |
 |
