037152 LEGRAND BORNA VIKING3 ACC. 3P STEP 5
037152
LEGRAND
50

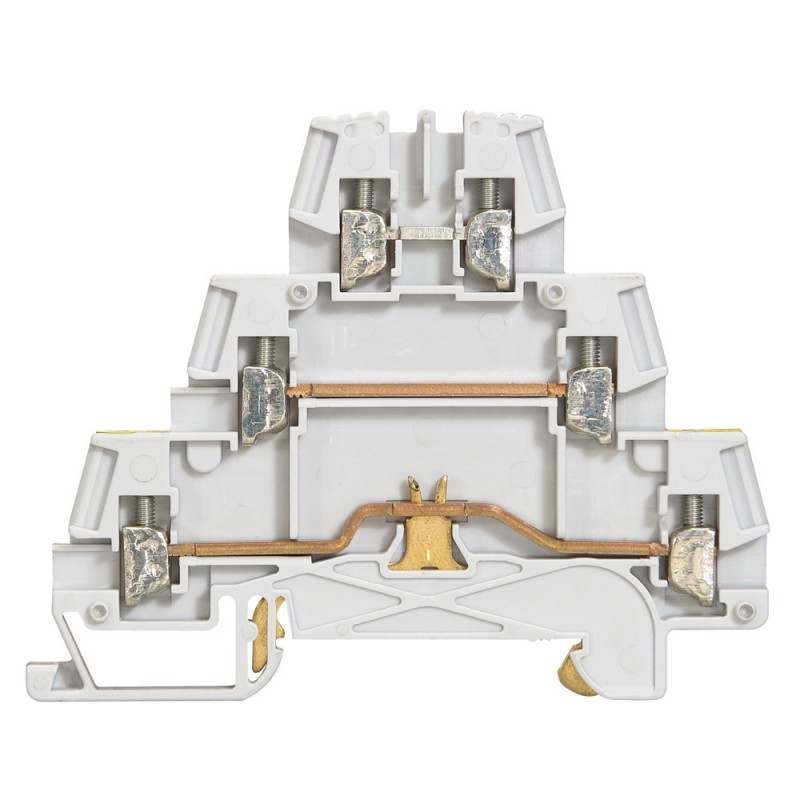

BORNA VIKING3 ACC. 3P STEP 5
Viking 3 Phase/Neutral/Earth Terminal Block 2.5mm² Screw Connection 3 Level Metal Base 5mm Grey
Viking 3 terminal block with screw - 2.5² - 5 step
Terminal blocks > Feed-through terminal block
VIKING TERMINALS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-4 mm² |
|---|---|
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-2.5 mm² |
| Connectable conductor cross section solid-core | 0.25-4 mm² |
| Connectable conductor cross section multi-wired | 0.25-2.5 mm² |
| Rated current In | 24 A |
| Rated voltage | 400 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 3 |
| Number of clamp positions per level | 2 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 5 mm |
| Height | 67.5 mm |
| Depth | 84.5 mm |
| Explosion-tested version 'Ex e' | Yes |
| Closing plate required | Yes |
| Colour | Multi-coloured |
| Internally connected stages | No |
| Inflammability class of insulation material according to UL 94 | V2 |
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 2 |
| Connectable conductor cross section solid-core (EF007337) | 0.25 mm² |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 67.5 mm |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.25 mm² |
| Explosion-tested version 'Ex e' (EF008498) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 0.25 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 24 A |
| Closing plate required (EF002525) | Yes |
| Depth (EF000049) | 84.5 mm |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Colour (EF000007) | Multi colour |
| Rated voltage (EF000228) | 400 V |
| Width (EF000008) | 5 mm |
| Number of levels (EF002659) | 3 |
| Type of electrical connection 2 (EF002527) | Screw connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 037152 EN_037152.pdf | 1 Mbytes |
 |
