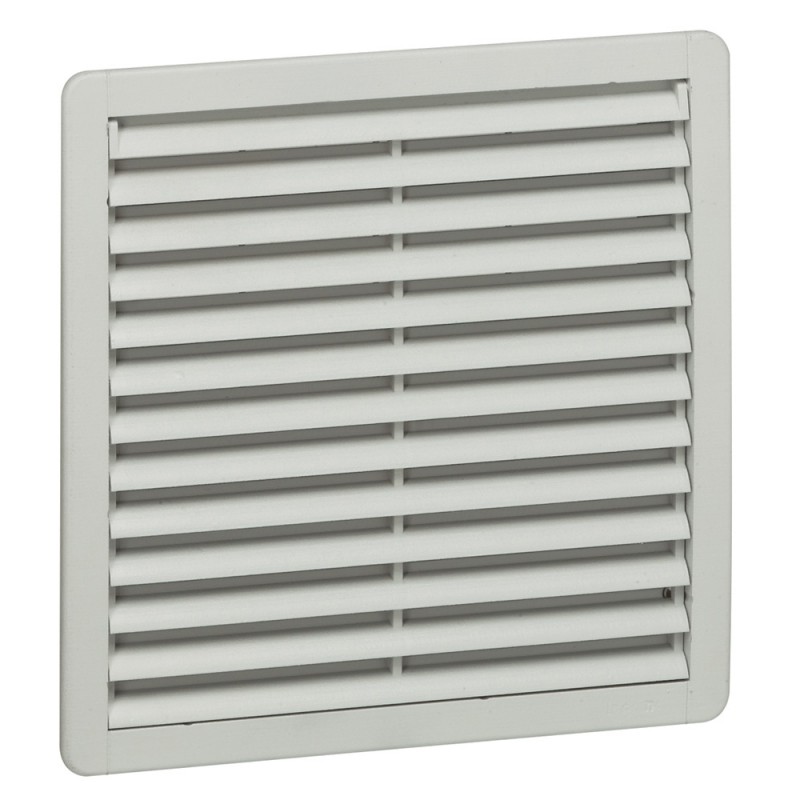

LEGRAND 034851 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

034851 LEGRAND FAN 120/160M3

Code: 034851

Manufacturer: LEGRAND

Description:

FAN 120/160M3
Legrand Enclosure Ventilation Fan 120/160m³/h with Plastic Grills and Washable Filter
Fan 120/160 m³/h - RAL 7035 - with plastic grid - IP54- IK08

Categories:

  • Cabinet enclosures > Ventilator (switchgear cabinet)
  • LEGRAND > ATLANTIC-MARINA CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 239,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Ventilation fan kits with plastic grill IP 54 - IK 08 230V - 50/60 Hz RAL 7035 plastic housing Supplied with finger protection guards External projection 7-10mm Accepts mounting spacer Cat. No. 0348 88/89 Used to reduce internal projection and improve wiring space Fitted externally on to the enclosure with rapid fix screws 1mm to 4mm panel thickness An extra louvre can be fitted to improve air flow and extraction 120/160 m³/h 120 m³ with filter 130 m³ with extra grill/filter Cat. No. 0348 35 160 m³ without filter installed (free flowing) Pack comprising a pair of RAL 7035 plastic grills 250 x 250mm and washable filter EU3, G3
Number of fans1
Operating voltage AC 50 Hz230-240 V
Operating voltage AC 60 Hz230-240 V
Voltage typeAC
Suitable for wall built-inYes
Built as slide-in ventilatorNo
Air circulatorNo
Roof ventilatorNo
With filterYes
Volume flow, freeblowing160 m³/h
Rated power20 W
Degree of protection (IP)IP54
Mounting methodScrew mounting
Suitable for 19 inch rack mountingNo
ColourGrey
RAL-number7035
Width250 mm
Height250 mm
Depth105 mm

ETIM for 034851 Cabinets and enclosures (EC000320)

Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value230 V
Feature nameSuitable for wall built-in (EF007536)
Feature valueYes
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value230 V
Feature nameHeight (EF000040)
Feature value250 mm
Feature nameWith filter (EF006013)
Feature valueYes
Feature nameAir circulator (EF007516)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP54
Feature nameVoltage type (EF000187)
Feature valueAC
Feature nameBuilt as slide-in ventilator (EF007126)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueScrew mounting
Feature nameRoof ventilator (EF007099)
Feature valueNo
Feature nameRated power (EF007051)
Feature value20 W
Feature nameVolume flow, freeblowing (EF007173)
Feature value160 m³/h
Feature nameNumber of fans (EF000928)
Feature value1
Feature nameDepth (EF000049)
Feature value105 mm
Feature nameSuitable for 19 inch rack mounting (EF000337)
Feature valueNo
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameWidth (EF000008)
Feature value250 mm

DATASHEET - PDF

Title
Size
Type
034851 EN_034851.pdf
236 Kbytes
