LEGRANDSTEP TERMINALS AND TERMINALS034043 LEGRAND CLICK TERMINALS 2X25 MM2

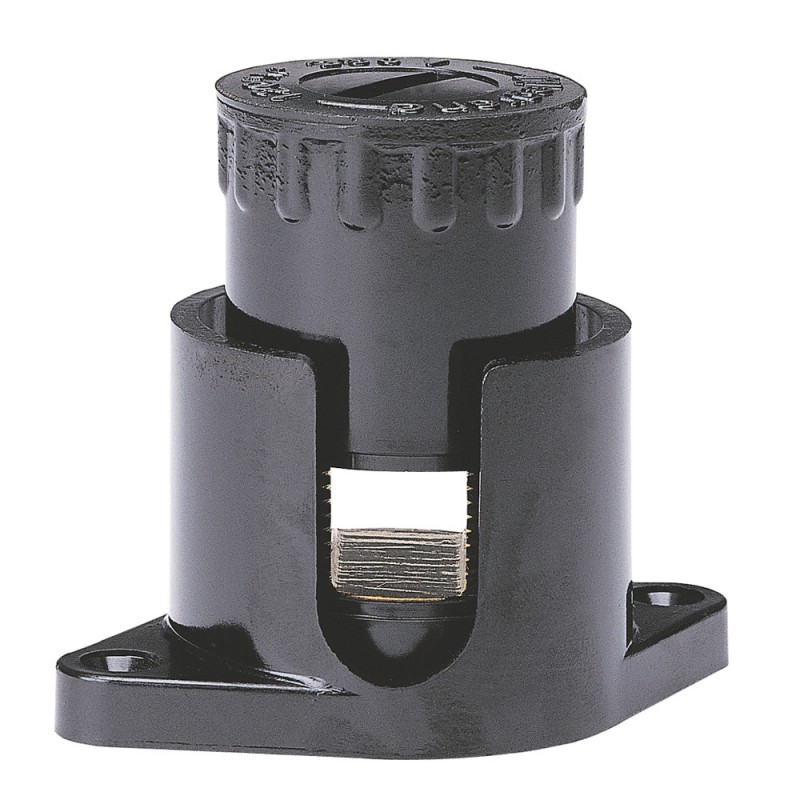

LEGRAND 034043 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

034043 LEGRAND CLICK TERMINALS 2X25 MM2

Code: 034043

Manufacturer: LEGRAND

Description:

CLICK TERMINALS 2X25 MM2
TERMINALS CLICK 2X25 MM2
Nylbloc Non-Shear Hexagonal Head Line Tap with Feet 2mm² x 30mm²
Anti-shear terminal block 2x25mm². Cable pitch 7.4mm. Height 49mm

Categories:

  • Terminal blocks > Single- and multi-pole terminal strip
  • LEGRAND > STEP TERMINALS AND TERMINALS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 242,40 €

Unit Price: 12,12 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Explosion-tested version 'Ex e'No
Connectable conductor cross section fine-strand without cable end sleeve25-25 mm²
Connectable conductor cross section fine-strand with cable end sleeve16-16 mm²
Connectable conductor cross section solid-core25-25 mm²
Connectable conductor cross section multi-wired25-25 mm²
Rated current In157 A
Rated voltage230 V
Type of electrical connection 1Other
Type of electrical connection 2Screw connection
Number of poles1
Number of clamp positions per pole1
Mounting methodOther
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Inflammability class of insulation material according to UL94Other
Width48 mm
Height49 mm
Depth25.8 mm
Closing plate requiredNo
ColourBlack
TransparentNo

ETIM for 034043 Terminal blocks (EC001284)

Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value25 mm²
Feature nameHeight (EF000040)
Feature value49 mm
Feature nameConnectable conductor cross section fine-strand with cable end sleeve (EF007339)
Feature value16 mm²
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueOther
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value25 mm²
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value25 mm²
Feature nameExplosion-tested version 'Ex e' (EF008498)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameRated current In (EF008250)
Feature value157 A
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameClosing plate required (EF002525)
Feature valueNo
Feature nameDepth (EF000049)
Feature value25.8 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueOther
Feature nameColour (EF000007)
Feature valueBlack
Feature nameWidth (EF000008)
Feature value48 mm
Feature nameNumber of clamp positions per pole (EF002519)
Feature value1
Feature nameRated voltage (EF000228)
Feature value230 V
Feature nameType of electrical connection 2 (EF002527)
Feature valueScrew connection

DATASHEET - PDF

Title
Size
Type
034043 EN_034042.pdf
37 Kbytes
