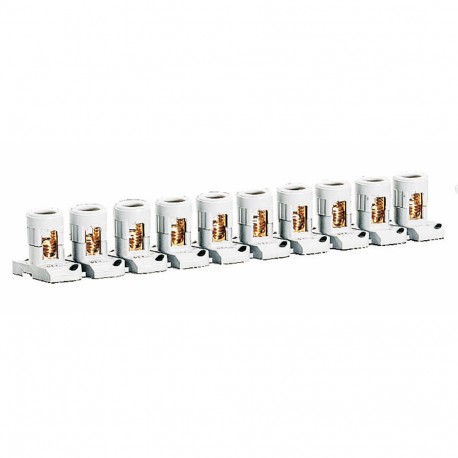

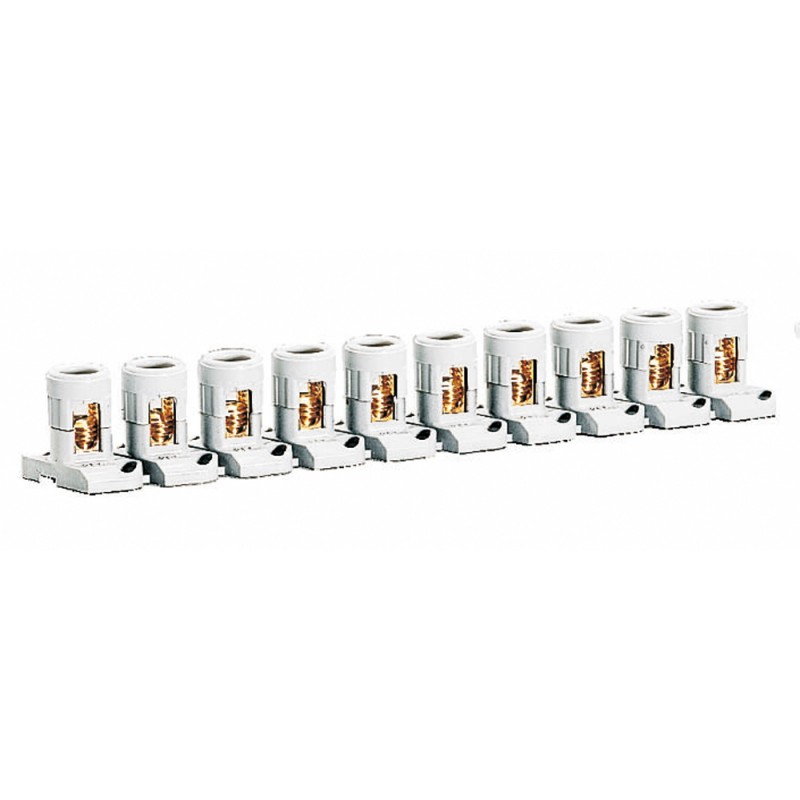

034001 LEGRAND STRIP STEP 2X10 MM2
034001
LEGRAND
10
STRIP STEP 2X10 MM2
Nylbloc Line Tap with Feet 2mm² x 10mm² (Supplied in Strip)
Supreme pass-through strip. 10 separable terminals with capacity 2x10² Step 19.5
Terminal blocks > Single- and multi-pole terminal strip
STEP TERMINALS AND TERMINALS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Explosion-tested version 'Ex e' | No |
|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve | 10-10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 6-6 mm² |
| Connectable conductor cross section solid-core | 10-10 mm² |
| Connectable conductor cross section multi-wired | 10-10 mm² |
| Rated current In | 57 A |
| Rated voltage | 230 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of poles | 1 |
| Number of clamp positions per pole | 1 |
| Mounting method | Other |
|---|---|
| Material insulation body | Thermoplastic |
| Operating temperature | -5-40 °C |
| Inflammability class of insulation material according to UL94 | Other |
| Width | 216 mm |
| Height | 29 mm |
| Depth | 25 mm |
| Closing plate required | No |
| Colour | Grey |
| Transparent | No |
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section solid-core (EF007337) | 10 mm² |
| Height (EF000040) | 29 mm |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 6 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | Other |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 10 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 10 mm² |
| Explosion-tested version 'Ex e' (EF008498) | No |
| Transparent (EF006243) | No |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 57 A |
| Number of poles (EF001391) | 1 |
| Closing plate required (EF002525) | No |
| Depth (EF000049) | 25 mm |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Colour (EF000007) | Grey |
| Width (EF000008) | 216 mm |
| Number of clamp positions per pole (EF002519) | 1 |
| Rated voltage (EF000228) | 230 V |
| Type of electrical connection 2 (EF002527) | Screw connection |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 034001 EN_034001.pdf | 126 Kbytes |
 |
