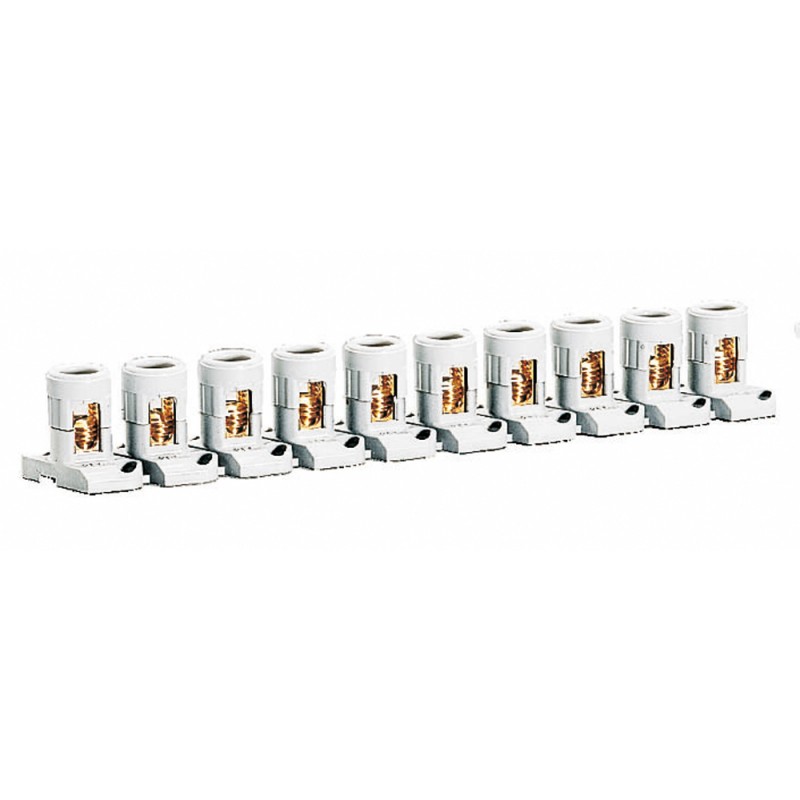

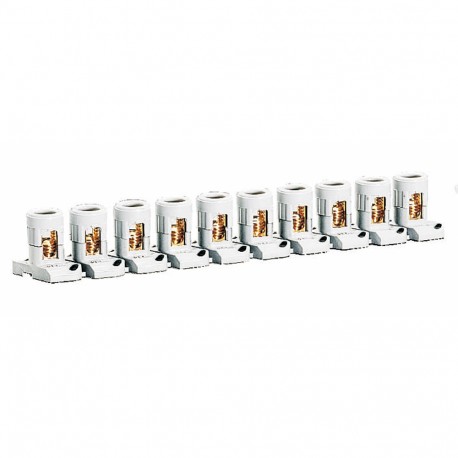

034000 LEGRAND 2X6 MM2 PASS-THROUGH STRIP

Code: 034000

Manufacturer: LEGRAND

Description:

2X6 MM2 PASS-THROUGH STRIP
STRIP STEP 2X6 MM2
Line taps - capacity per tap 2x6 mm² - width 15 mm - strip of 10 separable
Supreme pass-through strip. 10 separable terminal blocks with capacity 2x6² Step 15

Categories:

  • Terminal blocks > Single- and multi-pole terminal strip
  • LEGRAND > STEP TERMINALS AND TERMINALS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 156,76 €

Unit Price: 15,676 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)10
  • Volume (dm3)0.887
  • Weight (g)522.00
Product characteristics
Line taps
Strip of 10 separable line taps
  • With feet
  • Capacity per tap: : 2 x 6 mm²
  • Width : : 15 mm
General characteristics
Line taps and equipotential bonding connectors

ETIM for 034000 Terminal blocks (EC001284)

Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value6 mm²
Feature nameHeight (EF000040)
Feature value29 mm
Feature nameConnectable conductor cross section fine-strand with cable end sleeve (EF007339)
Feature value4 mm²
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueOther
Feature nameMaterial insulation body (EF007543)
Feature valueThermoplastic
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value6 mm²
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value6 mm²
Feature nameExplosion-tested version 'Ex e' (EF008498)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameRated current In (EF008250)
Feature value40 A
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameClosing plate required (EF002525)
Feature valueNo
Feature nameDepth (EF000049)
Feature value20 mm
Feature nameType of electrical connection 1 (EF002526)
Feature valueScrew connection
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value161 mm
Feature nameNumber of clamp positions per pole (EF002519)
Feature value1
Feature nameRated voltage (EF000228)
Feature value230 V
Feature nameType of electrical connection 2 (EF002527)
Feature valueScrew connection

DATASHEET - PDF

Title
Size
Type
034000 EN_034000.pdf
126 Kbytes
