LEGRANDVARIOUS VDI033493 LEGRAND 6-PORT GIGABIT POE SWITCH

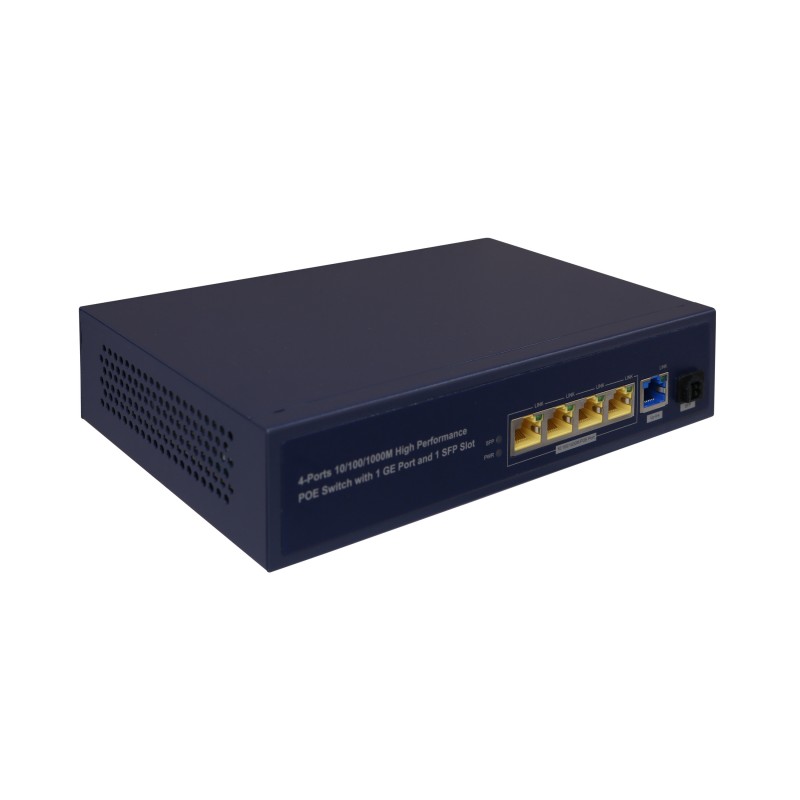

LEGRAND 033493 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

033493 LEGRAND 6-PORT GIGABIT POE SWITCH

Code: 033493

Manufacturer: LEGRAND

Description:

6-PORT GIGABIT POE SWITCH
6-Port Gigabit Ethernet PoE Switch

Categories:

  • Data and telecommunication > Network switch
  • LEGRAND > VARIOUS VDI

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

6-port Ethernet switch that includes: -1 Gigabit RJ45 and 1 fiber optic SFP uplinks. -4 Gigabit PoE+ Rj45 outputs. Not manageable. Power of the entire device: 65W. Maximum power: 30 W per port.
EthernetYes
Number of 10/100 Mbps RJ45 ports0
Number of 10/100/1000 Mbps RJ45 ports5
Number of 1000 Mbps RJ45 ports0
Number of 10 Gbps RJ45 ports0
Number of 10 Gbps GBIC ports0
Number of 100/1000 Mbps Mini GBIC Ports0
Number of 1000 Mbps Mini GBIC Ports0
Number of 40 Gbps Mini-GBIC ports0
Number of 100 Gbps Mini-GBIC ports0
Number of RJ45/Mini GBIC Combo Ports0
Number of 1000 Mbps GBIC ports0
Number of 10/100 Mbps M12 ports0
Number of 100 Mbps SC ports0
Number of 1000 Mbps SC (SX) ports0
Number of Ports 1000 Mbps SC (LX)0
Number of 100 Mbps ST ports0
Number of 100 Mbps POF ports0
Number of 1000 Mbps POF ports0
Number of other ports1
Power over Ethernet (PoE)802.3 at (PoE+)
Number of PoE ports4
Max PoE power.65 W
Type of mountingDesktop Type
Number of module slots1
Layer 2Yes
Layer 3No
Protection Class (IP)IP2X
Height44.5 mm
Width210 mm
Depth138 mm
Grade2TV compatible according to XP-C 90-483Yes
Grade3TV compatible according to XP-C 90-483Yes
Impact resistanceIK04
Operating Temperature0-40 °C
Storage temperature-40-70 °C
Type of voltageAC
Nominal Voltage100-230 V
Nominal current0.5-0.5 A
frequency50-60 Hz
ColourBlack

ETIM for 033493 Data networking products (EC000734)

Feature namePower over Ethernet (PoE) (EF009714)
Feature value802.3 at (PoE+)
Feature nameLayer 2 (EF004883)
Feature valueYes
Feature nameNumber of ports 1000 Mbps SC (SX) (EF003551)
Feature value0
Feature nameHeight (EF000040)
Feature value44.5 mm
Feature nameNumber of ports 1000 Mbps SC (LX) (EF003552)
Feature value0
Feature nameNumber of ports 1000 Mbps Mini GBIC (EF004321)
Feature value0
Feature nameMax. PoE power (EF009716)
Feature value65 W
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP2X
Feature nameNumber of ports PoE (EF009715)
Feature value4
Feature nameNumber of module slots (EF003597)
Feature value1
Feature nameMounting method (EF000003)
Feature valueDesk type
Feature nameNumber of ports 1000 Mbps POF (EF009910)
Feature value0
Feature nameLayer 3 (EF004884)
Feature valueNo
Feature nameNumber of ports 100 Mbps POF (EF009895)
Feature value0
Feature nameNumber of ports 1000 Mbps GBIC (EF004318)
Feature value0
Feature nameNumber of ports 10/100 Mbps RJ45 (EF003549)
Feature value0
Feature nameNumber of ports 10/100/1000 Mbps RJ45 (EF004316)
Feature value5
Feature nameNumber of ports 10/100 Mbps M12 (EF004315)
Feature value0
Feature nameNumber of other ports (EF007643)
Feature value1
Feature nameCompatible with Grade3TV according to XP-C 90-483 (EFFR0002)
Feature valueYes
Feature nameCompatible with Grade2TV according to XP-C 90-483 (EFFR0001)
Feature valueYes
Feature nameNumber of ports 10 Gbps Mini GBIC (EF008850)
Feature value0
Feature nameNumber of ports 10 Gbps RJ45 (EF012063)
Feature value0
Feature nameDepth (EF000049)
Feature value138 mm
Feature nameEthernet (EF003535)
Feature valueYes
Feature nameNumber of ports 100 Mbps SC (EF000900)
Feature value0
Feature nameWidth (EF000008)
Feature value210 mm
Feature nameNumber of ports 100/1000 Mbps Mini GBIC (EF008849)
Feature value0
Feature nameNumber of ports 40 Gbps Mini GBIC (EF012061)
Feature value0
Feature nameNumber of combination-ports RJ45/Mini GBIC (EF004849)
Feature value0
Feature nameNumber of ports 1000 Mbps RJ45 (EF000902)
Feature value0
Feature nameNumber of ports 100 Gbps Mini GBIC (EF012062)
Feature value0
Feature nameNumber of ports 100 Mbps ST (EF000923)
Feature value0

DATASHEET - PDF

Title
Size
Type
033493 EN_033493.pdf
121 Kbytes
