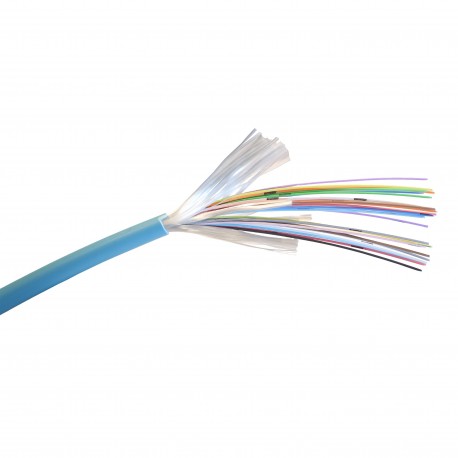

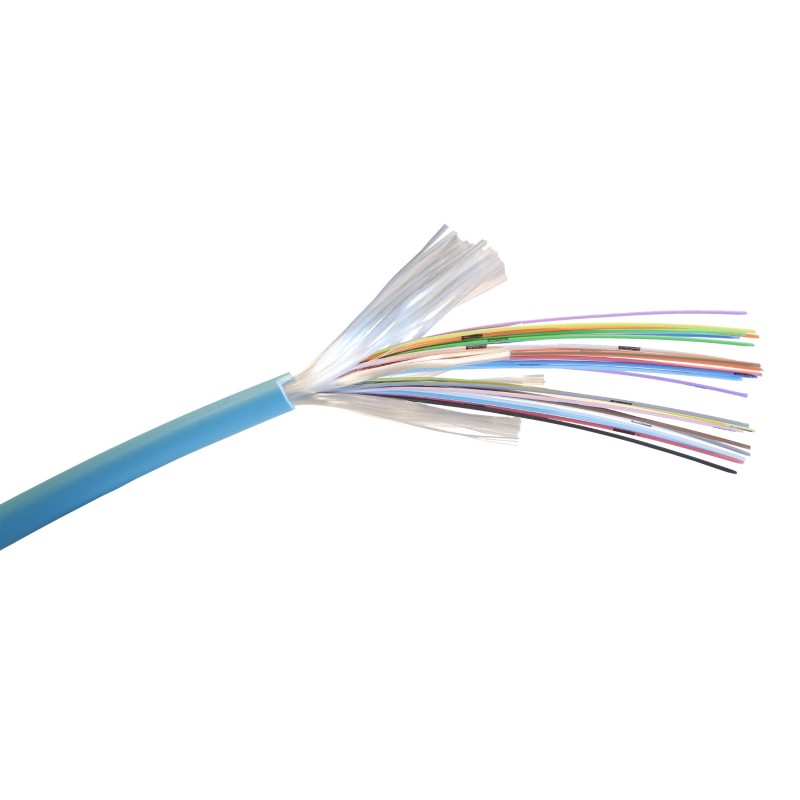

032552 LEGRAND LCS-CABLE OM3 AJUS 12F I/E. Sold in reels of 2000 m. The unit price is per meter.
032552
LEGRAND
3 m.
LCS-CABLE OM3 AJUS 12F I/E. Sold in reels of 2000 m. The unit price is per meter.
Cables fiber optic multimode OM3 Indoor/outdoor LSZH 24 fiber, tight
OM3 Multimode Fiber Optic Cable Indoor/Outdoor LSZH 24 fibers, fitted
Cables > Fibre optic cable
OPTICAL FIBER
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Cables fiber optic multimode OM3 (50/125 ?m) Resistant to bending For installations multimode 50/125 ?m, type OM 3 color Covers Aqua For networks for 10 Giga Ethernet Indoor LSZH (except Refs. 0 325 13, 0 325 15, 0 325 23, 0 325 24, 0 325 25, 0 325 40, 0 325 41 and 0 325 42) color Code: FOTAG in Accordance with the rules IN 50173-2, ISO IEC 11801, Supplied in coils (2000 m) Structure set: "easy stripGeneral characteristics
Legrand cabling system LCS3 fiber optic cables| Feature Name | Feature Value |
|---|---|
| Resistant to chemicals (EF001074) | No |
| Halogen free according to EN IEC 60754-2 (EF003792) | Yes |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles (EF011579) | d2 |
| Cable height approx. (EF003797) | 8.5 mm |
| Reaction-to-fire according to EN 13501-6: Smoke production (EF011578) | s2 |
| Reaction-to-fire according to EN 13501-6: Class (EF011577) | Dca |
| Weight (EF000167) | 63 |
| Cable width approx. (EF003796) | 8.5 mm |
| Fibre optic cable colour coding according to S-12 Skanova standard (EFSE0005) | No |
| Fibre type (EF000080) | Multi mode 50/125 |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Halogen free according to EN IEC 60754-1 (EF016498) | Yes |
| Flame retardant according to IEC 60332-3-24 (Cat C) (EF016496) | Yes |
| Flame retardant according to IEC 60332-3-25 (Cat D) (EF016497) | No |
| Suitable for underground installation (EF003689) | No |
| Outer diameter approx. (EF003921) | 8.5 mm |
| With strain relief (EF000878) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) (EF016494) | No |
| Blow in (EF003806) | No |
| Material outer sheath (EF001625) | Other |
| Flame retardant according to IEC 60332-3-23 (Cat B) (EF016495) | No |
| Reaction-to-fire according to EN 13501-6: Acidity (EF011580) | a1 |
| Flame retardant according to IEC 60332-1-2 (EF016492) | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) (EF016493) | No |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 115 mm |
| Cable metal free (EF001682) | Yes |
| Number of fibres (EF000472) | 24 |
| With rodent protection (EF007960) | No |
| Max. tensile strength during installation (EF013801) | 2.4 kN |
| Specification material outer sheath (EF011806) | Other |
| Circuit integrity according to IEC 60331-23 (EF016619) | No |
| Category (EF001619) | OM3 |
| Circuit integrity according to IEC 60331-25 (EF016620) | None |
| Colour outer sheath (EF001618) | Turquoise |
| Cable geometry (EF013532) | Round |
| Circuit integrity according to EN 50200 (EF016621) | None |
| Halogen free according to EN IEC 60754-3 (EF016500) | No |
| Radial water blocking cable (EF011012) | Yes |
| Low smoke according to EN IEC 61034-2 (EF003799) | Yes |
| Number of fibres per tube (EF001679) | 24 |
| Longitudinal water blocking cable (EF011011) | No |
| Type of tube (EF001678) | Tight |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 032552 EN_032510.pdf | 92 Kbytes |
 |
