LEGRANDOPTICAL FIBER032523 LEGRAND LCS-CAB OS2 LIB 4F EXT AR LSZH. Sold in reels of 2000 m. The unit price is per meter.

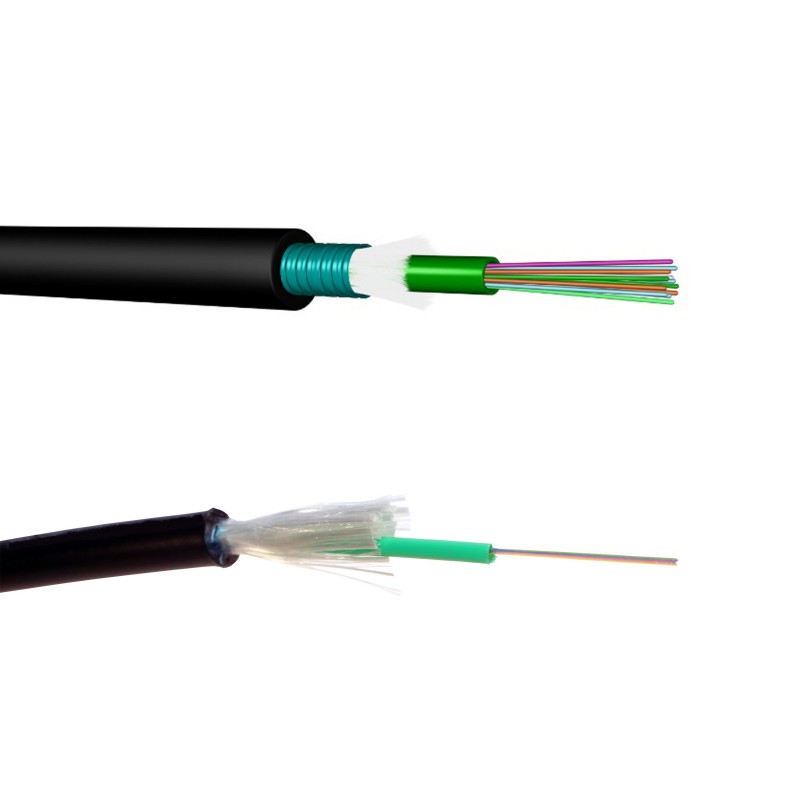

LEGRAND 032523 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

032523 LEGRAND LCS-CAB OS2 LIB 4F EXT AR LSZH. Sold in reels of 2000 m. The unit price is per meter.

Code: 032523

Manufacturer: LEGRAND

Description:

LCS-CAB OS2 LIB 4F EXT AR LSZH. Sold in reels of 2000 m. The unit price is per meter.
Cable fiber optic singlemode OS2 Outside Armed LSZH 4 fibers, loose
Single-mode OS2 Outdoor Fiber Optic Cable LSZH 4 fibers, loose

Categories:

  • Cables > Fibre optic cable
  • LEGRAND > OPTICAL FIBER

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 3.681,20 €

Unit Price: 1,8406 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Cables fiber optic singlemode OS2 (9/125 ?m) - (compatible OS1) For installations with single-mode 9/125 ?m, type OS 2 Decks of yellow or black exterior, antirroedores? Indoor LSZH (except Refs. 0 325 13, 0 325 15, 0 325 23, 0 325 24, 0 325 25, 0 325 40, 0 325 41 and 0 325 42) color Code: FOTAG in Accordance with the rules IN 50173-2, ISO IEC 11801, Supplied in coils (2000 m) Structure set: "easy strip"

General characteristics

Legrand cabling system LCS3 fiber optic cables

ETIM for 032523 Cable (EC000034)

Feature nameResistant to chemicals (EF001074)
Feature valueNo
Feature nameHalogen free according to EN IEC 60754-2 (EF003792)
Feature valueNo
Feature nameReaction-to-fire according to EN 13501-6: Flaming droplets/particles (EF011579)
Feature valueNone
Feature nameCable height approx. (EF003797)
Feature value8.5 mm
Feature nameReaction-to-fire according to EN 13501-6: Smoke production (EF011578)
Feature valueNone
Feature nameReaction-to-fire according to EN 13501-6: Class (EF011577)
Feature valueNone
Feature nameWeight (EF000167)
Feature value75
Feature nameCable width approx. (EF003796)
Feature value8.5 mm
Feature nameFibre optic cable colour coding according to S-12 Skanova standard (EFSE0005)
Feature valueNo
Feature nameFibre type (EF000080)
Feature valueSingle mode 9/125
Feature nameOil resistant according to EN IEC 60811-404 (EF009770)
Feature valueNo
Feature nameHalogen free according to EN IEC 60754-1 (EF016498)
Feature valueNo
Feature nameFlame retardant according to IEC 60332-3-24 (Cat C) (EF016496)
Feature valueNo
Feature nameFlame retardant according to IEC 60332-3-25 (Cat D) (EF016497)
Feature valueNo
Feature nameSuitable for underground installation (EF003689)
Feature valueNo
Feature nameOuter diameter approx. (EF003921)
Feature value8.5 mm
Feature nameWith strain relief (EF000878)
Feature valueNo
Feature nameFlame retardant according to IEC 60332-3-22 (Cat A) (EF016494)
Feature valueNo
Feature nameBlow in (EF003806)
Feature valueNo
Feature nameMaterial outer sheath (EF001625)
Feature valueOther
Feature nameFlame retardant according to IEC 60332-3-23 (Cat B) (EF016495)
Feature valueNo
Feature nameReaction-to-fire according to EN 13501-6: Acidity (EF011580)
Feature valueNone
Feature nameFlame retardant according to IEC 60332-1-2 (EF016492)
Feature valueNo
Feature nameFlame retardant according to IEC 60332-3-21 (Cat A F/R) (EF016493)
Feature valueNo
Feature nameMin. permitted bending radius, stationary application/permanent installation (EF011803)
Feature value85 mm
Feature nameCable metal free (EF001682)
Feature valueNo
Feature nameNumber of fibres (EF000472)
Feature value4
Feature nameWith rodent protection (EF007960)
Feature valueYes
Feature nameMax. tensile strength during installation (EF013801)
Feature value3 kN
Feature nameSpecification material outer sheath (EF011806)
Feature valuePolyethylene (PE)
Feature nameCircuit integrity according to IEC 60331-23 (EF016619)
Feature valueNo
Feature nameCategory (EF001619)
Feature valueOS2
Feature nameCircuit integrity according to IEC 60331-25 (EF016620)
Feature valueNone
Feature nameColour outer sheath (EF001618)
Feature valueBlack
Feature nameCable geometry (EF013532)
Feature valueRound
Feature nameCircuit integrity according to EN 50200 (EF016621)
Feature valueNone
Feature nameHalogen free according to EN IEC 60754-3 (EF016500)
Feature valueNo
Feature nameRadial water blocking cable (EF011012)
Feature valueYes
Feature nameLow smoke according to EN IEC 61034-2 (EF003799)
Feature valueNo
Feature nameNumber of fibres per tube (EF001679)
Feature value4
Feature nameLongitudinal water blocking cable (EF011011)
Feature valueNo
Feature nameType of tube (EF001678)
Feature valueLoose tube
