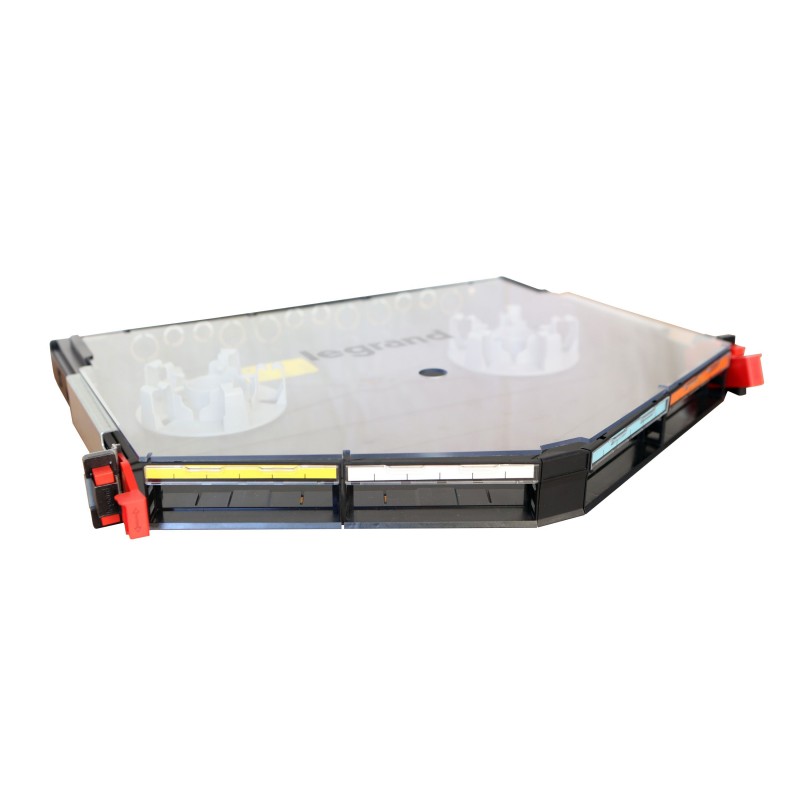

032101 LEGRAND MODULAR DRAWER EQUIP LOCK
032101
LEGRAND
MODULAR DRAWER EQUIP LOCK
Modular 19" sliding optical tray to be equipped. Angled tray
Data and telecommunication > Patch panel fibre optic
OPTICAL FIBER
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Suitable for various couplings/adapters | 96 |
|---|---|
| Suitable for various module inserts | 4 |
| With multiple couplers/adapters | 0 |
| With housing | Yes |
| With flexible connections | No |
| Type of fiber | Other |
| APC Version | Yes |
| External connector type | Other |
| Interior Connector Type | Other |
| Colour | Black |
| RAL number | 9005 |
| Type of mounting | 482.2 mm (19 inch) mount |
| Number of Height Units (AU) | 1 |
|---|---|
| Height | 43.8 mm |
| Width | 482.5 mm |
| Depth | 408.6 mm |
| Operating Temperature | -10-60°C |
| Storage temperature | -10-60°C |
| Display of markings on the connection terminals | Yes |
| Prewired | No |
| Label Space/Print Area | Yes |
| Equipped with door or cover | Yes |
| Cable Holder | Other |
| Feature Name | Feature Value |
|---|---|
| With number of couplings/adapters (EF005037) | 0 |
| Height (EF000040) | 43.8 mm |
| Suitable for number of couplings/adapters (EF001583) | 96 |
| Number of height units (EF003561) | 1 |
| With pigtails (EF001582) | No |
| Suitable for number of module inserts (EF007795) | 4 |
| Mounting method (EF000003) | 482.6 mm (19 inch) mounting |
| With housing (EF001102) | Yes |
| Type of connector external (EF008068) | Other |
| Type of connector interior (EF008069) | Other |
| Fibre type (EF000080) | Other |
| Depth (EF000049) | 408.6 mm |
| Colour (EF000007) | Black |
| APC-version (EF001569) | Yes |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 482.5 mm |
