028960 LEGRAND DMX3 6300 L FIXED 4POLOS 5000 TO
028960
LEGRAND
DMX3 6300 L FIXED 4POLOS 5000 TO

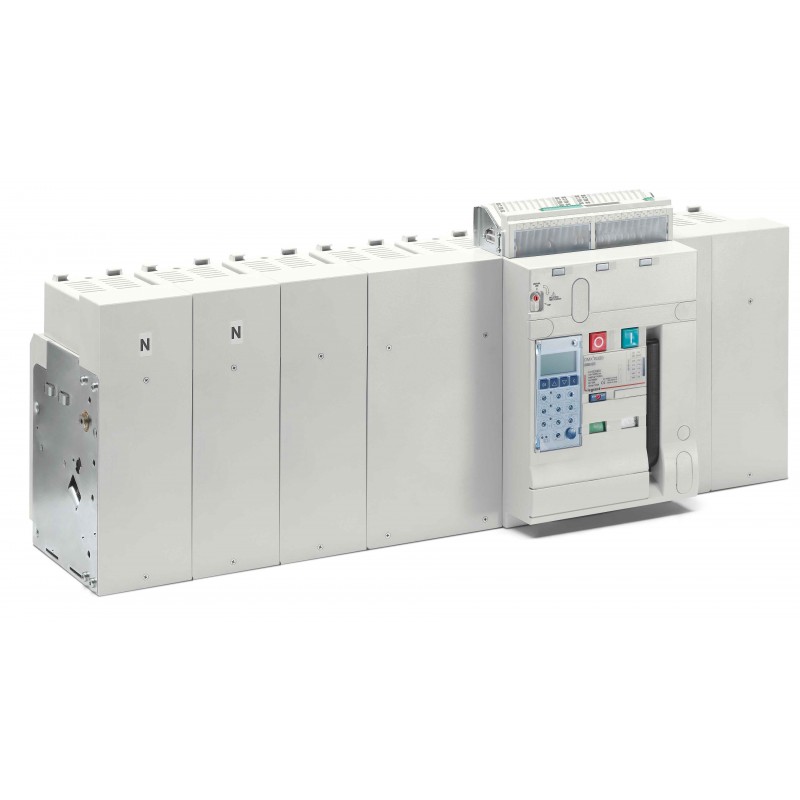

Air circuit breaker DMX³ 6300 lcu 100 kA - fixed version - 4P - 5000 A
DMX³ 6300 open rack switch - fixed - lcu 100kA - 4P - ln 5000A
Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
OPEN FRAME AUTOMATION DMX3
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)546.00
- Weight (g)185 000.00
- Supplied with
- 4 auxiliary contacts: NO/NC
- rear terminals for horizontal connection with bars
- door sealing
- Breaking capacity Icu 100 kA (415 V~)
- Frame 6300
- 4P
- In : 5000 A
- Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
- Please ask for DMX³ order form
- Conform to IEC 60947-2
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP30 |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| Adjustment range undelayed short-circuit release (EF007131) | 10000 A |
| Integrated earth fault protection (EF007296) | Yes |
| With integrated under voltage release (EF001390) | Yes |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Overload release current setting (EF002336) | 2000 A |
| Motor drive integrated (EF006697) | Yes |
| Adjustment range short-term delayed short-circuit release (EF007129) | 3000 A |
| Type of control element (EF006976) | Push button |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 100 kA |
| Rated permanent current Iu (EF001389) | 5000 A |
| With switched-off indicator (EF007006) | Yes |
| Motor drive optional (EF007386) | Yes |
| Position of connection for main current circuit (EF006671) | Back |
| Rated voltage (EF003977) | 230 V |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Complete device with protection unit (EF008906) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 028960 EN_028960.pdf | 2 Mbytes |
 |
