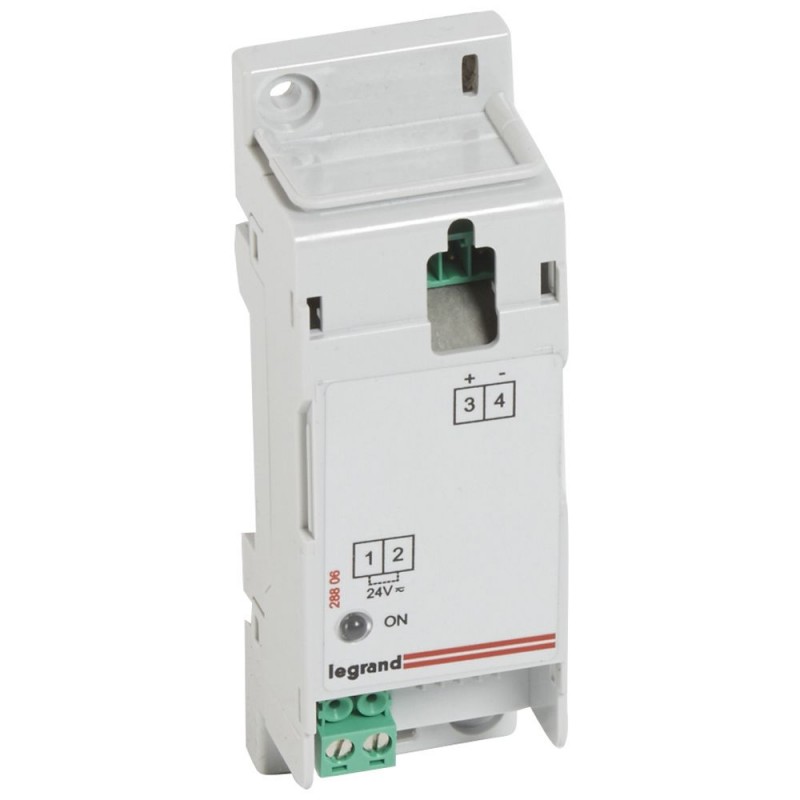

028806 LEGRAND DMX3 POWER EXT 12VDC UD PROT

Code: 028806

Manufacturer: LEGRAND

Description:

DMX3 POWER EXT 12VDC UD PROT
Power supply - external - 12 V DC - for DMX³ electronic protection units
External power supply 12 V= for DMX³

Categories:

  • Low-voltage industrial components > DC-power supply
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.556
  • Weight (g)84.00
Product characteristics
Accessories for electronic protection units
  • 24 V DC external auxiliary power supply
General characteristics
Electronic protection units for DMX³ 2500, 4000 and 6300
  • DMX³ circuit breakers must be equipped with electronic protection units (to be ordered together for factory assembly) enabling very precise adjustments of the protection conditions, while maintaining total discrimination with downstream devices
  • All protection units are equipped with batteries for powering in case of mains fault or when the breaker is open or not connected

ETIM for 028806 Low-voltage industrial controls and switchgear (EC002540)

Feature nameHeight (EF000040)
Feature value105 mm
Feature name3rd secondary output voltage (EF006800)
Feature value12 V
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWall mounting possible (EF003973)
Feature valueYes
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameMax. output current 3 (EF008286)
Feature value0.25 A
Feature nameOutput voltage stabilized (EF003092)
Feature valueNo
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value21.6 V
Feature nameNominal value output current 3 (EF009398)
Feature value0.25 A
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value21.6 V
Feature nameNominal value output current 2 (EF009397)
Feature value0.25 A
Feature nameRated supply voltage DC (EF007078)
Feature value21.6 V
Feature nameShort-circuit-proof (EF007332)
Feature valueYes
Feature nameNominal value output voltage 2 (EF009394)
Feature value12 V
Feature nameNominal value output voltage 1 (EF009393)
Feature value12 V
Feature nameMax. output current 1 (EF008284)
Feature value0.25 A
Feature nameNominal value output current 1 (EF009396)
Feature value0.25 A
Feature nameMax. output current 2 (EF008285)
Feature value0.25 A
Feature nameNominal value output voltage 3 (EF009395)
Feature value12 V
Feature nameModular version (EF001126)
Feature valueYes
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC/DC
Feature nameWidth in number of modular spacings (EF002950)
Feature value2
Feature nameDirect mounting possible (EF005689)
Feature valueYes
Feature name2nd secondary output voltage (EF006797)
Feature value12 V
Feature nameBuilt-in height (EF000332)
Feature value105 mm
Feature nameStabilized (EF005302)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature name1st secondary output voltage (EF006792)
Feature value21.6 V
Feature nameSecondary voltage adjustable (EF007002)
Feature valueNo
Feature nameDepth (EF000049)
Feature value50 mm
Feature nameWidth (EF000008)
Feature value35.6 mm
