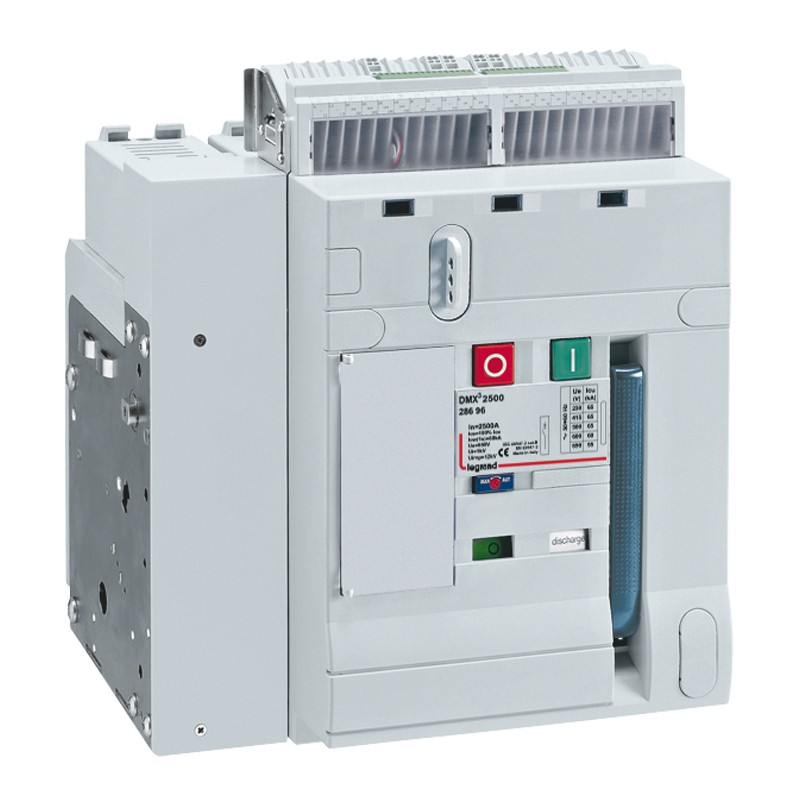

028686 LEGRAND DMX3-I 2500 FIXED 3POLOS 2500

Code: 028686

Manufacturer: LEGRAND

Description:

DMX3-I 2500 FIXED 3POLOS 2500
Trip free switch DMX³-I 2500 - fixed version - 3P - 2500 A
DMX³ -I 2500 load cutting disconnector - fixed - size 1 - 3P - ln 2500A

Categories:

  • Low-voltage industrial components > Switch disconnector
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)55 100.00
Product characteristics
Fixed version
  • Supplied with:
    • 4 auxiliary contacts: NO/NC
    • flat rear terminals for connection with bars
    • door sealing
DMX³-I 2500
  • Frame 2500
  • 3P
  • In : 2500 A
General characteristics
Trip free switches DMX³-I - from 1250 to 6300 A
  • Conform to IEC 60947-3

ETIM for 028686 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value4
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value4
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameRated short-time withstand current lcw (EF007050)
Feature value65 kA
Feature nameVoltage release optional (EF007491)
Feature valueYes
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameMotor drive integrated (EF006697)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value65 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value1000 kW
Feature nameRated permanent current Iu (EF001389)
Feature value2500 A
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueGrey
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value2500 A
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameRated operating voltage (EF001435)
Feature value230 V
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP30
