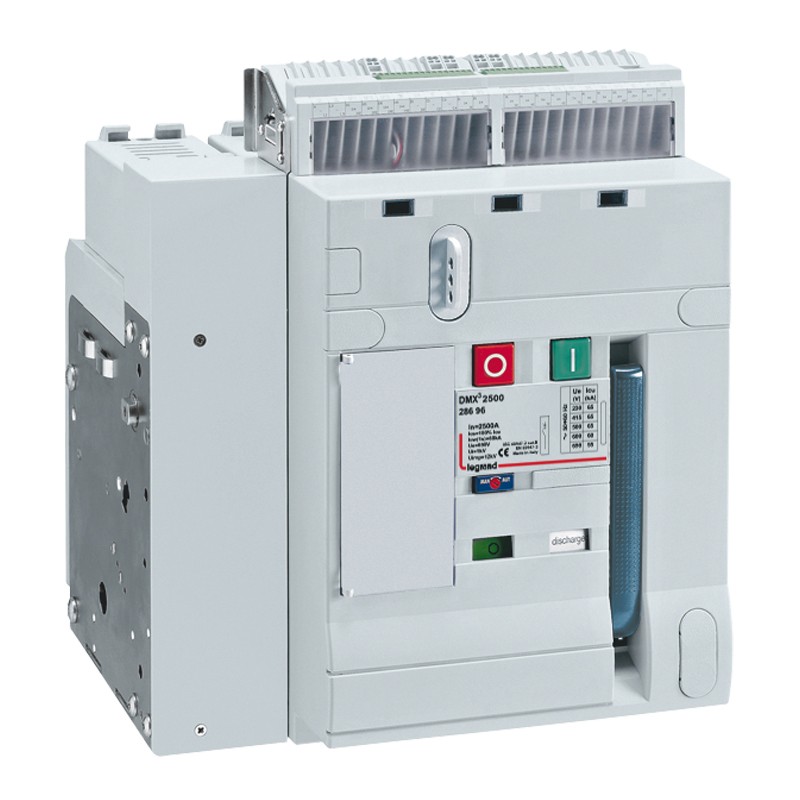

028685 LEGRAND DMX3-I 2500 FIXED 3POLOS 2000 TO
028685
LEGRAND
DMX3-I 2500 FIXED 3POLOS 2000 TO
Trip free switch DMX³-I 2500 - fixed version - 3P - 2000 A
DMX³ -I 2500 load cutting disconnector - fixed - size 1 - 3P - ln 2000A
Low-voltage industrial components > Switch disconnector
OPEN FRAME AUTOMATION DMX3
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)192.421
- Weight (g)53 200.00
- Supplied with:
- 4 auxiliary contacts: NO/NC
- flat rear terminals for connection with bars
- door sealing
- Frame 2500
- 3P
- In : 2000 A
- Conform to IEC 60947-3
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 65 kA |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | Yes |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Push button |
| Conditioned rated short-circuit current Iq (EF001444) | 65 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 800 kW |
| Rated permanent current Iu (EF001389) | 2000 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | Yes |
| Colour control element (EF007167) | Grey |
| Rated permanent current at AC-21, 400 V (EF009165) | 2000 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 230 V |
| Degree of protection (IP), front side (EF003118) | IP30 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 028685 EN_028685.pdf | 138 Kbytes |
 |
