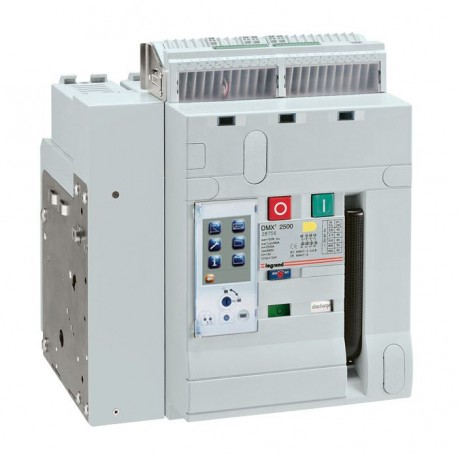

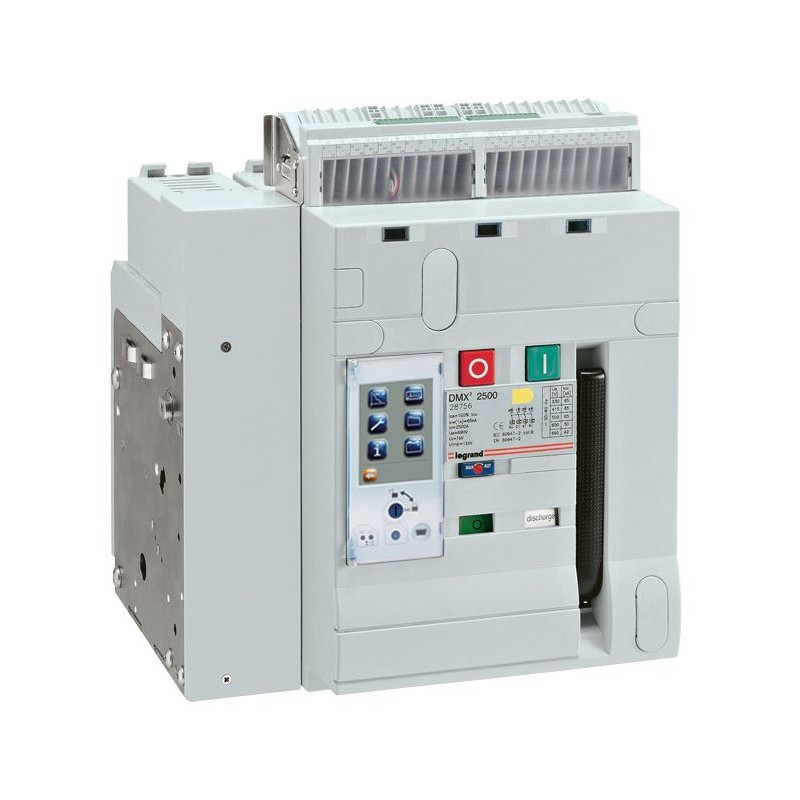

028656 LEGRAND DMX3 2500 H FIXED 4POLOS 2500

Code: 028656

Manufacturer: LEGRAND

Description:

DMX3 2500 H FIXED 4POLOS 2500
Air circuit breaker DMX³ 2500 lcu 65 kA - fixed version - 4P - 2500 A
DMX³ 2500 Open Frame Automatic Switch - Fixed - 65kA - 4P - 2500A

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)192.421
  • Weight (g)65 400.00
Product characteristics
Fixed version
  • Supplied with
    • 4 auxiliary contacts: NO/NC
    • rear terminals for horizontal connection with bars
    • door sealing
DMX³ - H 2500
  • Breaking capacity Icu 65 kA (415 V~)
  • Frame 2500
  • 4P
  • In : 2500 A
General characteristics
Air circuit breakers DMX³ 2500 and 4000 - from 800 to 4000 A
  • Automatic air circuit breakers must be equipped with electronic protection unit, imperatively ordered together for factory assembly
  • Please ask for DMX³ order form
  • Conform to IEC 60947-2

ETIM for 028656 Low-voltage industrial controls and switchgear (EC000228)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value4
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value4
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value5000 A
Feature nameIntegrated earth fault protection (EF007296)
Feature valueYes
Feature nameWith integrated under voltage release (EF001390)
Feature valueYes
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameOverload release current setting (EF002336)
Feature value1000 A
Feature nameMotor drive integrated (EF006697)
Feature valueYes
Feature nameAdjustment range short-term delayed short-circuit release (EF007129)
Feature value1500 A
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameRated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048)
Feature value65 kA
Feature nameRated permanent current Iu (EF001389)
Feature value2500 A
Feature nameWith switched-off indicator (EF007006)
Feature valueYes
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature namePosition of connection for main current circuit (EF006671)
Feature valueBack
Feature nameRated voltage (EF003977)
Feature value230 V
Feature nameDIN rail (top hat rail) mounting optional (EF008904)
Feature valueNo
Feature nameComplete device with protection unit (EF008906)
Feature valueYes
