LEGRANDOPEN FRAME AUTOMATION DMX3028515 LEGRAND DMX3 4000N 1000V FIXED 4P 2000A

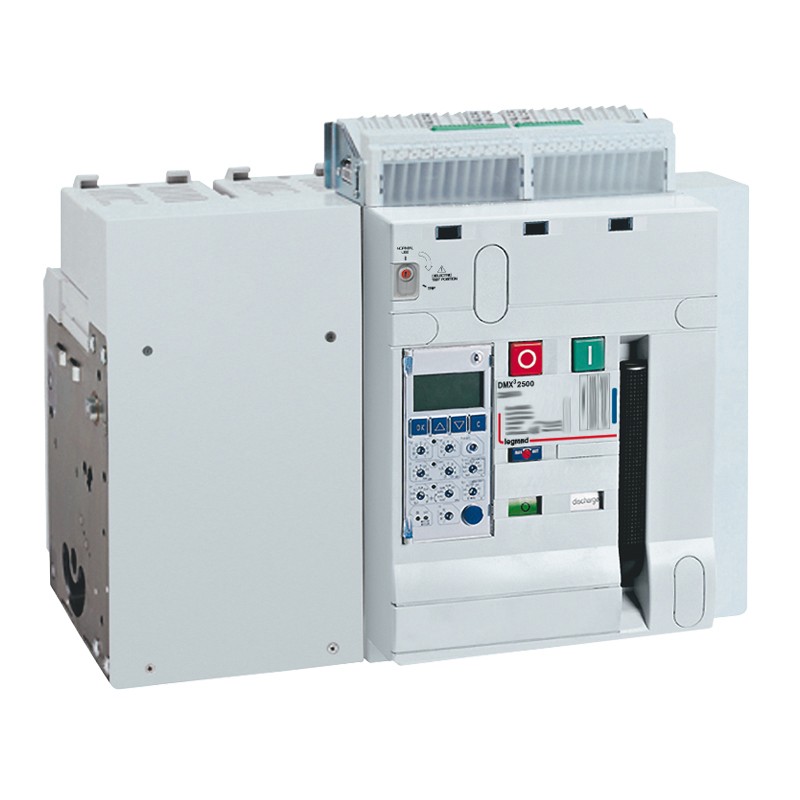

LEGRAND 028515 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

028515 LEGRAND DMX3 4000N 1000V FIXED 4P 2000A

Code: 028515

Manufacturer: LEGRAND

Description:

DMX3 4000N 1000V FIXED 4P 2000A
Open frame circuit breaker DMX³ 4000 - fixed - size 2 - 4P- In: 2000A - 1000Vac - Icu 50kA
DMX³ 4000 Open Frame Automatic Switch - Fixed - 4P - 2000A

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Product features

DMX³ 4000 open frame circuit breaker for photovoltaic, wind and railway applications - Fixed version - Size 2 - 4 Poles - In: 2000A - 1000Vac - Icu 50kA. In accordance with IEC 60947-2.

General features

DMX³ 4000 - 1000Vac - Open frame circuit breakers from 630 to 4000 A - Open frame switches allow protection and control at the entrance of the installation in specific sectors such as wind, photovoltaic and railway, which need to operate with voltages up to 1000V of alternating current - These products must be ordered with a protection unit (factory mounting) - They are supplied with 4 auxiliary contacts NA /NC, 1 door joint, rear connections for horizontal connection (fixed version) or for flat connection (sectionable version), and sectionable base and kit (sectional version only).

ETIM for 028515 Low-voltage industrial controls and switchgear (EC000228)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value4
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value4000 A
Feature nameIntegrated earth fault protection (EF007296)
Feature valueNo
Feature nameWith integrated under voltage release (EF001390)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameOverload release current setting (EF002336)
Feature value800 A
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameAdjustment range short-term delayed short-circuit release (EF007129)
Feature value1200 A
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameRated permanent current Iu (EF001389)
Feature value2000 A
Feature nameWith switched-off indicator (EF007006)
Feature valueYes
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature namePosition of connection for main current circuit (EF006671)
Feature valueBack
Feature nameRated voltage (EF003977)
Feature value800 V
Feature nameDIN rail (top hat rail) mounting optional (EF008904)
Feature valueNo
Feature nameComplete device with protection unit (EF008906)
Feature valueNo
