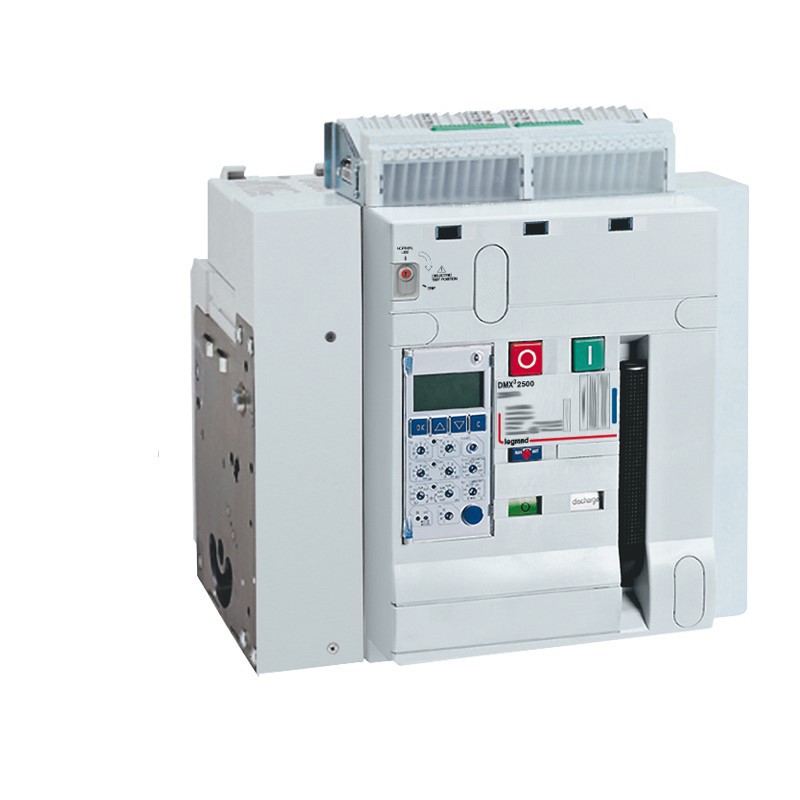

028502 LEGRAND DMX3 4000N 1000V FIXED 3P 1000A

Code: 028502

Manufacturer: LEGRAND

Description:

DMX3 4000N 1000V FIXED 3P 1000A
Open frame automatic switch DMX³ 4000 - fixed - size 2 - 3P- In: 1000A - 1000Vac - Icu 50kA
DMX³ 4000 Open Frame Automatic Switch - Fixed - 3P - 1000A

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Overview

DMX³ 4000 - fixed - size 2 - 3P- In: 1000A - 1000Vac - Icu 50kA - Includes 4 auxiliary contacts NO/NC, rear connections and door seal - Must be ordered with a factory-assembled protection unit.

description
Open frame automatic switch DMX³ 4000 for photovoltaic, wind and railway applications - Fixed version - Size 2 - 3 Poles - In: 1000A - 1000Vac - Icu 50kA. Conforms to IEC 60947-2.

specifications

Permanent nominal current Iu1000 A
Nominal voltage800-1000 V
Current Overload Release Setting400-1000 A
Short-Term Short-Circuit Delayed Release Adjustment Range600-10000 A
Short-circuit instantaneous release adjustment range2000-65000 A
Device constructionFixed integrated technology for integrated device
Integrated ground fault protectionNo
Main Current Circuit Connection TypeScrew connection
Suitable for DIN rail mountingNo
Optional DIN rail mountingNo
Number of auxiliary contacts as change contact4
With alarm activatedYes
With integrated low-voltage releaseNo
Number of poles3
Connection position for the main voltage circuitBehind
Execution of the actuator elementPush button
Complete device with protective deviceNo
Integrated motorized driveNo
Optional motorized driveYes
Protection Class (IP)IP30
Width408 mm
Height419 mm
Depth354 mm
Impact resistanceNot applicable
Operating Temperature-25-70 °C
Storage temperature-25-85 °C
Type of voltageAC
frequency50-60 Hz
Direction of the electricity supplyFrom the top or bottom
Display of markings on the connection terminalsNo
ColourGrey
RAL number7035
Halogen-freeYes
Terminal capacity240-600 mm²
Connection Cable TypeFlexible or rigid
Label Space/Print AreaNo
Contains battery and/or accumulatorNo

ETIM for 028502 Low-voltage industrial controls and switchgear (EC000228)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value4
Feature nameAdjustment range undelayed short-circuit release (EF007131)
Feature value2000 A
Feature nameIntegrated earth fault protection (EF007296)
Feature valueNo
Feature nameWith integrated under voltage release (EF001390)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameOverload release current setting (EF002336)
Feature value400 A
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameAdjustment range short-term delayed short-circuit release (EF007129)
Feature value600 A
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameRated permanent current Iu (EF001389)
Feature value1000 A
Feature nameWith switched-off indicator (EF007006)
Feature valueYes
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature namePosition of connection for main current circuit (EF006671)
Feature valueBack
Feature nameRated voltage (EF003977)
Feature value800 V
Feature nameDIN rail (top hat rail) mounting optional (EF008904)
Feature valueNo
Feature nameComplete device with protection unit (EF008906)
Feature valueNo
