LEGRANDOPEN FRAME AUTOMATION DMX3028250 LEGRAND DMX³-I 2500 FIXED 4P 1250A

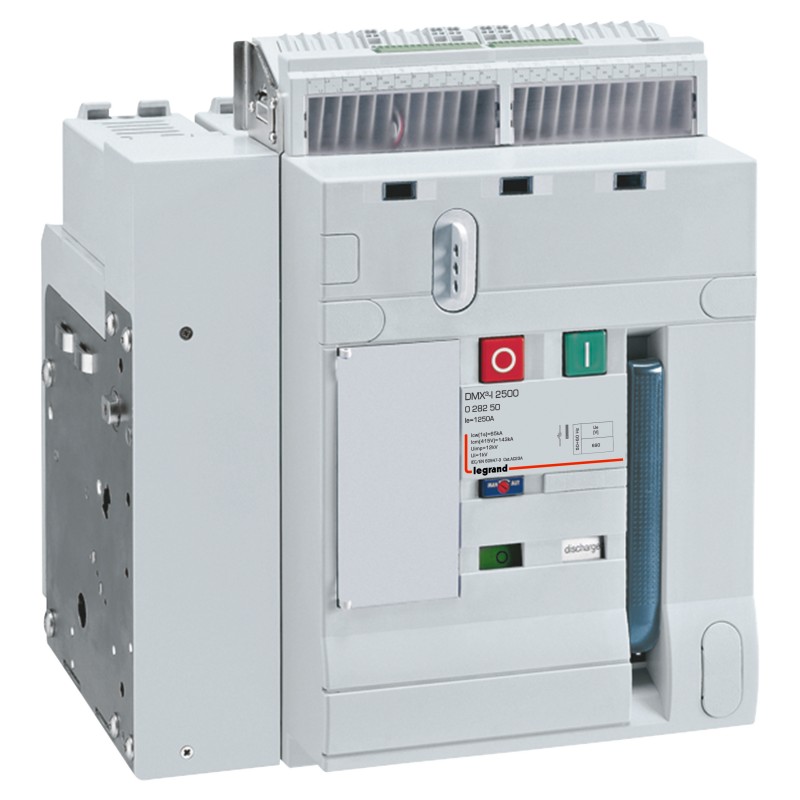

LEGRAND 028250 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

028250 LEGRAND DMX³-I 2500 FIXED 4P 1250A

Code: 028250

Manufacturer: LEGRAND

Description:

DMX³-I 2500 FIXED 4P 1250A
DMX³-I 2500 4 Pole 1250A Fixed Trip-Free Switch
DMX³ -I 2500 Load Cutting Disconnect - Fixed - Size 1 - 4P - ln 1250A

Categories:

  • Low-voltage industrial components > Power circuit-breaker for trafo/generator/installation protection
  • LEGRAND > OPEN FRAME AUTOMATION DMX3

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 4.558,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Rated permanent current Iu1250 A
Rated voltage230-690 V
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitBolt connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as change-over contact2
With switched-off indicatorYes
With integrated under voltage releaseNo
Number of poles4
Position of connection for main current circuitBack side
Type of control elementPush button
Complete device with protection unitNo
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP20
Width358 mm
Height414 mm
Depth354 mm
degree of impact strength (IK)Not applicable
Operating / setting temperature-25-70 °C
Storage temperature-25-85 °C
Voltage typeAC
Frequency50-60 Hz
Electric supplying directionBy the rear of the product
Terminal marking indicationNo
ColourGrey
RAL-number7035
Halogen freeYes
Terminals capacity50-2400 mm²
Cable nature for connectionFlexible or rigid
Label space/information surfaceNo
Contains Batteries and/or AccumulatorNo

ETIM for 028250 Low-voltage industrial controls and switchgear (EC000228)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value2
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value2
Feature nameIntegrated earth fault protection (EF007296)
Feature valueNo
Feature nameWith integrated under voltage release (EF001390)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valuePush button
Feature nameRated permanent current Iu (EF001389)
Feature value1250 A
Feature nameWith switched-off indicator (EF007006)
Feature valueYes
Feature nameMotor drive optional (EF007386)
Feature valueYes
Feature namePosition of connection for main current circuit (EF006671)
Feature valueBack
Feature nameRated voltage (EF003977)
Feature value230 V
Feature nameDIN rail (top hat rail) mounting optional (EF008904)
Feature valueNo
Feature nameComplete device with protection unit (EF008906)
Feature valueNo
