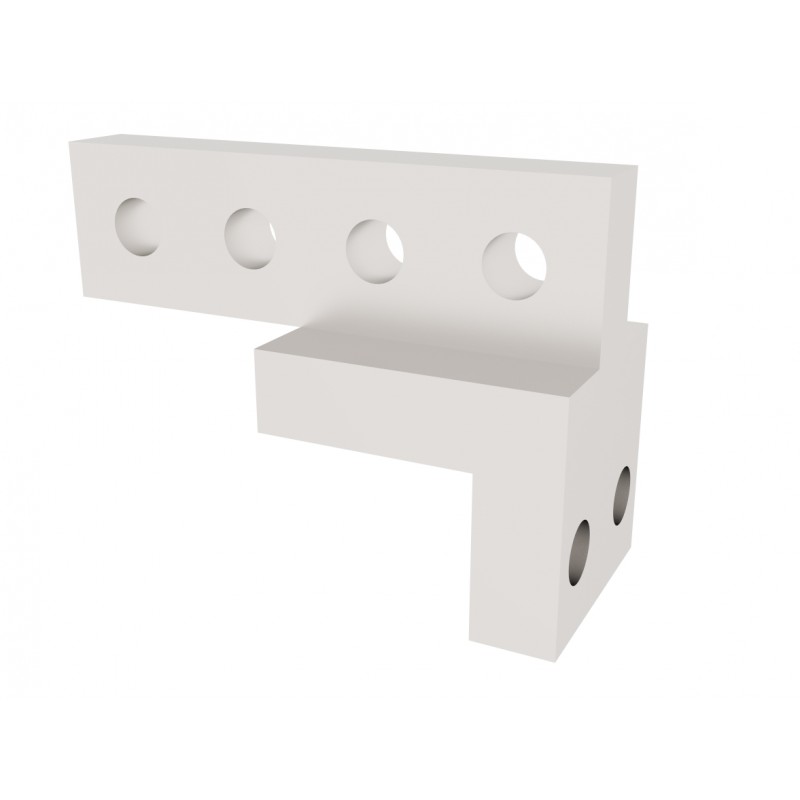

028185 LEGRAND DMX³ 1600 3P FRONT CONNECTION

DMX³ open-frame switches enable protection and control at the inlet of low-voltage installations from 630A to 6300A. DMX³-I Load Cut Disconnectors allow low-voltage circuits from 1000A to 6300A to be cut and sectioned under load. These power protection devices are available in a fixed or sectional version and can be equipped with interlocking mechanisms for mains inverters. They can be complemented with auxiliaries such as trigger coils, motorized controls, locks, front or rear sockets, separators. The electronic protection units allow precise adjustments of the protection parameters and must be ordered at the same time as the DMX³ for factory installation. The DMX³ 1600 has a complete version pre-equipped with a protection unit. The protection units can be adjusted directly on the display or in combination with a Bluetooth dongle, the parameters can be adjusted via an app.

Rated Current In	1600 A
Model	Profile
Longitude	105 mm
Width	45 mm

Height	75 mm
Flexible	No
Surface treatment	Silver plated
