026664 LEGRAND DPX-IS-a 3P 400A M. L.
026664
LEGRAND
DPX-IS-a 3P 400A M. L.

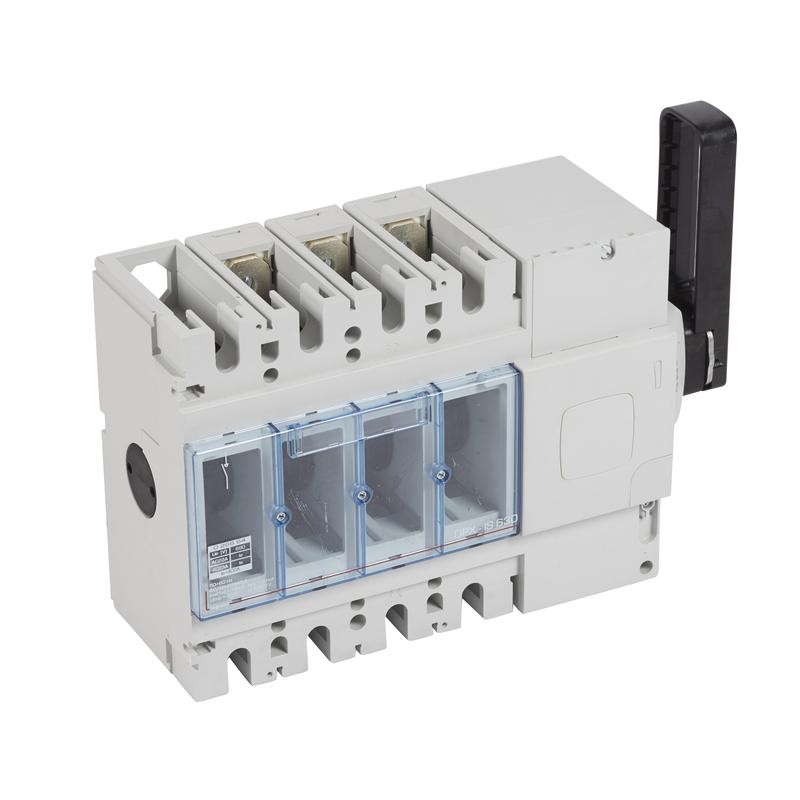

Isolating switch - DPX-IS 630 without release - 3P - 400 A - right-hand side handle
DPX-IS 630 - 400A - 3P - non-trip switch - right side control
Low-voltage industrial components > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)30.00
- Weight (g)6 942.00
Right-hand side handle
- 3P
- 400 A
- Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
- Padlock integrated in the handle
- Supplied with terminal shields, and cage terminals
- Conform to IEC 60947-3
- Category of use AC 23 A
- Accept electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Rocker lever |
| Conditioned rated short-circuit current Iq (EF001444) | 100 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 160 kW |
| Rated permanent current Iu (EF001389) | 400 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Colour control element (EF007167) | Black |
| Rated permanent current at AC-21, 400 V (EF009165) | 400 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 230 V |
| Degree of protection (IP), front side (EF003118) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 026664 EN_026660.pdf | 833 Kbytes |
 |
