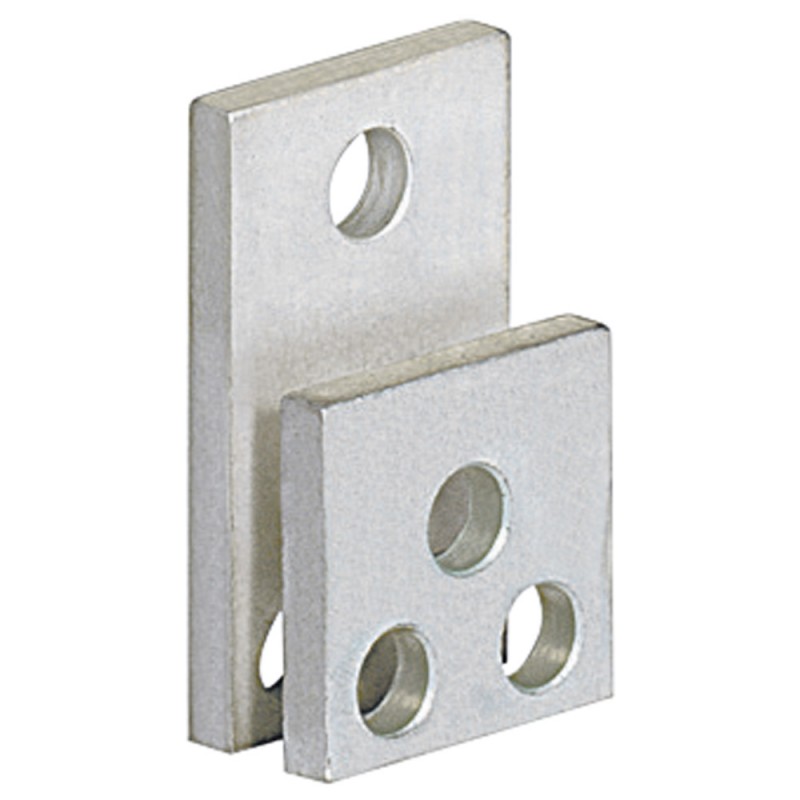

026268 LEGRAND DPX 1600 CONNECTION ACCESSORY

Code: 026268

Manufacturer: LEGRAND

Description:

DPX 1600 CONNECTION ACCESSORY
ACCESSORY CONNECTION DPX 1600
Extended front terminals (4) - for DPX 1250/1600 - 1600 A
DPX³/DPX-IS 1600 - 1600A extension for terminal connection

Categories:

  • Low-voltage industrial components > Busbar terminal
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 107,32 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)1.62
  • Weight (g)1 474.00
Product characteristics
Accessories
Extended front terminals
  • Long terminals for 1600 A (3 bars max. per pole)
General characteristics
DPX™-IS 1600 isolating switches - 800 to 1600 A
  • Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
  • Connection with cage terminals
  • Padlock integrated in the handle
  • Supplied with terminal shields
  • Conform to IEC 60947-3
  • Category of use AC 23 A
  • Accept electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures

ETIM for 026268 Low-voltage industrial controls and switchgear (EC000001)

Feature nameSuitable for (EF000073)
Feature valueFlat rail
Feature nameWidth clamp (EF007092)
Feature value50 mm
Feature nameBusbar width (EF007219)
Feature value50 mm
Feature nameMax. rated operation current Ie (EF007356)
Feature value1600 A
Feature nameSuitable for round conductor connection (EF007258)
Feature valueNo
Feature nameBusbar thickness (EF007220)
Feature value12 mm
Feature nameSuitable for strip conductor connection (EF007242)
Feature valueNo
Feature nameSuitable for sector conductor connection (EF007260)
Feature valueYes
Feature nameMax. conductor cross section (EF004969)
Feature value600 mm²
