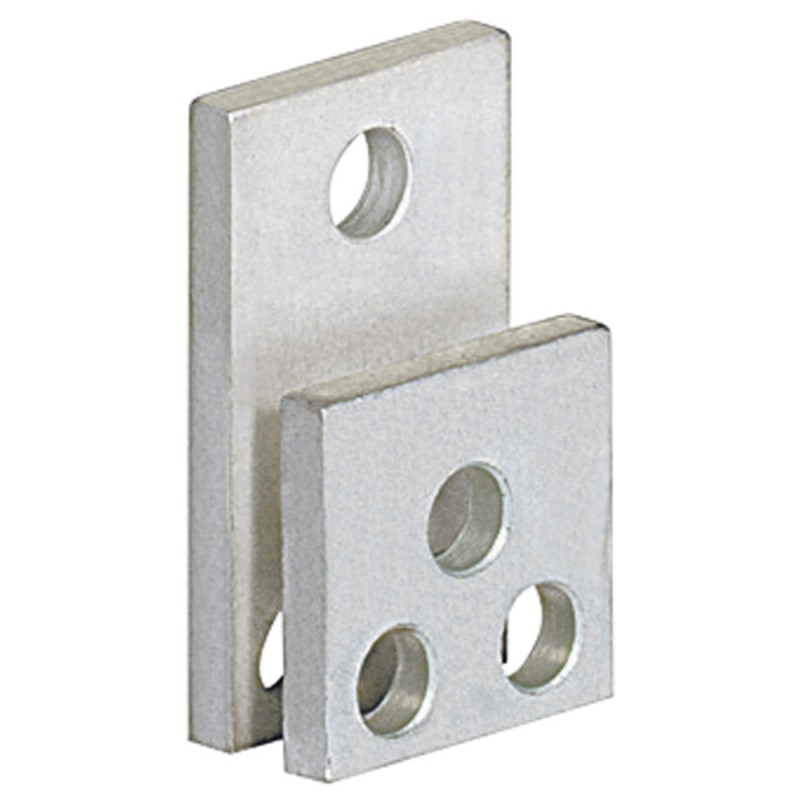

026267 LEGRAND ACCESSORY CONNECTION DPX 1600
026267
LEGRAND
ACCESSORY CONNECTION DPX 1600
Extended front terminals (4) - for DPX 1250/1600 - 630-1250 A
DPX³/DPX-IS 1600 extension - Up to 1250A for terminal connection
Low-voltage industrial components > Busbar terminal
DPX3 MOLDED BOX
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)1.005
- Weight (g)765.00
Extended front terminals
- Short terminals for 630 - 1250 A (2 bars max. per pole)
- Isolating switches for on-load circuit breaking by visible isolation and positive action of the contacts
- Connection with cage terminals
- Padlock integrated in the handle
- Supplied with terminal shields
- Conform to IEC 60947-3
- Category of use AC 23 A
- Accept electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
| Feature Name | Feature Value |
|---|---|
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 50 mm |
| Busbar width (EF007219) | 50 mm |
| Max. rated operation current Ie (EF007356) | 1600 A |
| Suitable for round conductor connection (EF007258) | No |
| Busbar thickness (EF007220) | 12 mm |
| Suitable for strip conductor connection (EF007242) | No |
| Suitable for sector conductor connection (EF007260) | Yes |
| Max. conductor cross section (EF004969) | 600 mm² |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 026267 EN_026267.pdf | 132 Kbytes |
 |
