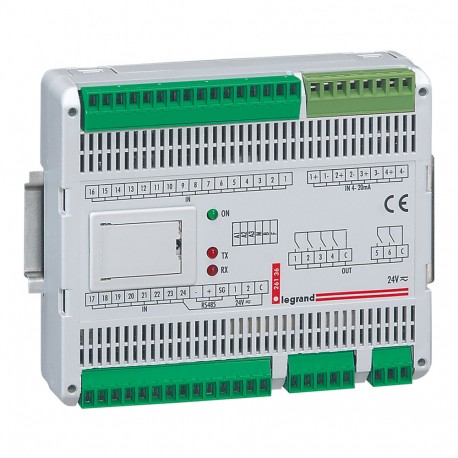

026136 LEGRAND SIGNALLING AND CONTROL INTERFACE

Code: 026136

Manufacturer: LEGRAND

Description:

SIGNALLING AND CONTROL INTERFACE
INTERFACE SIGNAGE AND CONTROL
DPX electronic interface - for RS485 modbus communication - 2 modules
DPX³ and DX³ signalling and control interface

Categories:

  • PLC's > Interface module
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 310,38 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)1.245
  • Weight (g)254.00
Product characteristics
DPX and DX³ signalling and control interface
  • Signalling and control interface between the power supervision system and the thermal magnetic and electronic circuit breakers.
  • Equipped with analogue / digital inputs and relay outputs.
  • Can handle multiple circuit breakers.
  • 24 inputs for collecting information from the signalling auxiliaries on the DPX and DX³ circuit breakers: auxiliary contact NO position (1 input) or NO+NC position (2 inputs), fault signal (1 input)
  • 6 outputs for: the remote control of the motor driven circuit breakers (2 outputs) and for tripping the circuit breakers for testing purposes (1 output)
  • Dimension: 6 modules
  • Power supply: 24 V~/=
  • RS 485 link (2-wire)
  • Address, speed and coding can be modified with configuration kit.
General characteristics
Power supervision system - remote control, monitoring and measurement
  • With the Legrand Power supervision system, circuit breakers are integrated in a supervision system
  • You can therefore check the status of the circuit breakers, measure the electrical values and control the circuit breakers remotely
  • MODBUS protocol

ETIM for 026136 PLC's (EC002780)

Feature nameHeight (EF000040)
Feature value90 mm
Feature nameType of electrical connection, control sided (EF008549)
Feature valueOther
Feature nameType of electrical connection, field-sided (EF005525)
Feature valueScrew connection
Feature nameMounting method (EF000003)
Feature valueOther
Feature namePollution degree (EF006786)
Feature value2
Feature nameDepth (EF000049)
Feature value30.5 mm
Feature nameRated current (EF000227)
Feature value0.33 A
Feature nameWidth (EF000008)
Feature value110 mm
Feature nameRated voltage (EF000228)
Feature value24 V
Feature nameNumber of poles (EF001391)
Feature value6

DATASHEET - PDF

Title
Size
Type
026136 EN_026136.pdf
139 Kbytes
