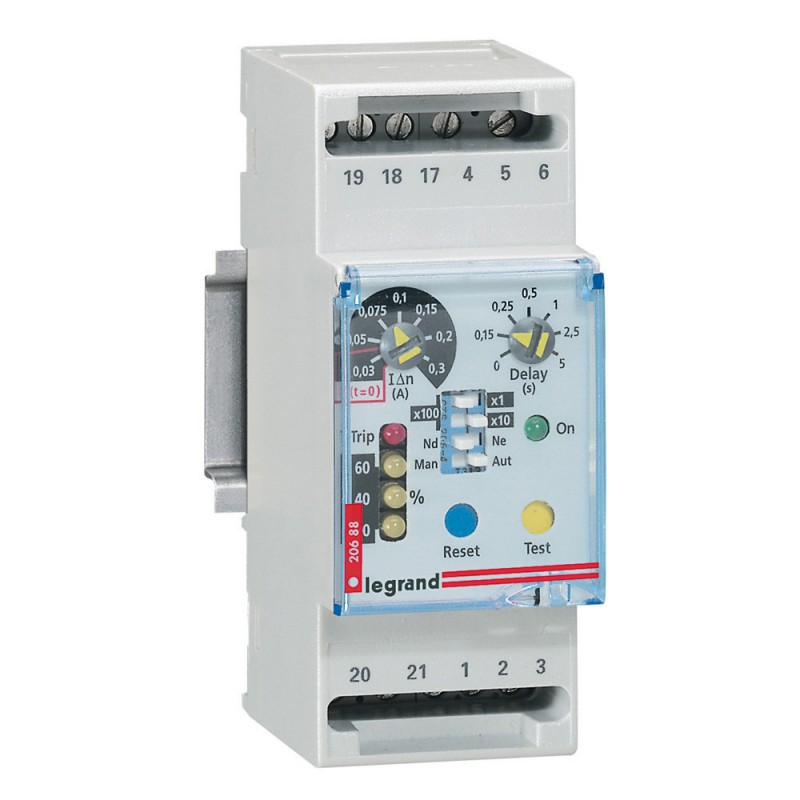

026088 LEGRAND 2-MODE DIFFERENTIAL RELAY

Code: 026088

Manufacturer: LEGRAND

Description:

2-MODE DIFFERENTIAL RELAY
DIFFERENTIAL RELAY 2 MODULES
Residual current relay - to clip on rail - 2 modules
Adjustable differential relay, DIN profile mounting - 2mod

Categories:

  • Relays > Residual current monitoring relay
  • LEGRAND > DPX3 MOLDED BOX

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 199,24 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)0.36
  • Weight (g)222.00
Product characteristics
Residual current relay
  • Detects fault currents, and, when used with a shunt trip or an undervoltage release, it gives the trip command to a MCCB or a switch
  • Comprises:
    • a tinged, sealable window
    • an auxiliary contact
    • a green Led indicating energisation
    • 3 yellow Leds indicating respectively the max. phase earth insulation current: 20, 40 and 60 %
    • a red Led indicating
  • Fixed: exceeding of the insulation fault current value
  • Flashing: breaking of one of the connections between coils and relays
  • For use with coils:
    • Ø35 and 80 mm with adjustable sensitivity: 0.03, 0.05, 0.075, 0.1, 0.15, 0.2, 0.3, 0.5, 0.75, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
    • Ø110 to 210 mm with adjustable sensitivity: 0.3, 0.5, 0.75, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
    • Ø150 mm with adjustable sensitivity: 0.5, 0.75, 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
    • Ø300 mm with adjustable sensitivity: 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 30 A
  • Adjustable trip: 0, 0.15, 0.25, 0.5, 1, 2.5, 5 seconds
  • Supply voltage: 230/240 V - 50/60 Hz
  • Residual current relay to clip on symmetrical rail
  • Number of modules : 2
General characteristics
Residual current relay and coils
  • Add residual current protection to DPX³ trip-free switches and DPX³ MCCBs equipped with release

ETIM for 026088 Relays (EC001445)

Feature nameHeight (EF000040)
Feature value89 mm
Feature nameSupply voltage AC 50 Hz (EF007532)
Feature value195.5 V
Feature nameSupply voltage AC 60 Hz (EF007533)
Feature value195.5 V
Feature nameResponse value amperage 1 (EF008204)
Feature value30 mA
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC
Feature nameFunction (EF000030)
Feature valueFor three-phase supply system
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameError registration possible (EF003423)
Feature valueYes
Feature nameIndication of difference current (EF003424)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameRated operating frequency (EF007024)
Feature value47 Hz
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameMin. adjustable delay-on energization time (EF008190)
Feature value5 s
Feature nameDepth (EF000049)
Feature value65.6 mm
Feature nameWidth (EF000008)
Feature value35 mm

DATASHEET - PDF
