LEGRANDACCESSORIES CONTROL AND CONTROL PANELS022941 LEGRAND 230V RED LED BLOCK

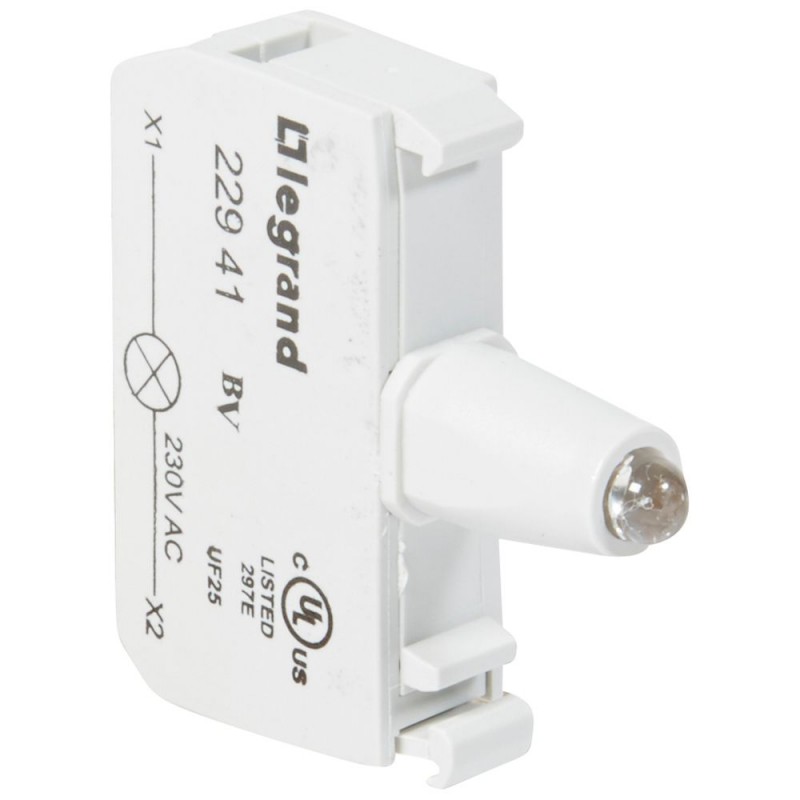

LEGRAND 022941 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

022941 LEGRAND 230V RED LED BLOCK

Code: 022941

Manufacturer: LEGRAND

Description:

230V RED LED BLOCK
BLOCK LED 230V RED
Osmoz electrical block - for illuminated head - red 230 V~
Osmoz light head splice block - 230V~ - red

Categories:

  • Low-voltage industrial components > Lamp holder block for control circuit devices
  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 141,91 €

Unit Price: 28,382 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • RoHS Compliant
  • Pack (number of units)5
  • Volume (dm3)0.229
  • Weight (g)76.00
Product characteristics
For illuminated heads
Screw terminals
  • 230 V~
  • Red -
General characteristics
Osmoz control and signalling units: electrical blocks
  • IP 20
  • Conform to IEC 60947-5-1

ETIM for 022941 Low-voltage industrial controls and switchgear (EC000204)

Feature nameConnection type auxiliary circuit (EF006820)
Feature valueScrew connection
Feature nameRated voltage Ue at AC 50 Hz (EF007029)
Feature value195.5 V
Feature nameLamp type (EF002423)
Feature valueLED
Feature nameType of fastening (EF002442)
Feature valueFront fastening
Feature nameWith integrated diode (EF001400)
Feature valueYes
Feature nameWith integrated voltage decreasing resistor (EF001399)
Feature valueYes
Feature nameVoltage type for actuating (EF008242)
Feature valueAC
Feature nameRated voltage Ue at AC 60 Hz (EF007030)
Feature value195.5 V
Feature nameTransformer integrated (EF001358)
Feature valueNo
Feature nameColour light source (EF001402)
Feature valueRed
Feature nameLamp holder (EF000048)
Feature valueNone
Feature nameWith light source (EF005905)
Feature valueYes

DATASHEET - PDF

Title
Size
Type
022941 EN_022941.pdf
132 Kbytes
