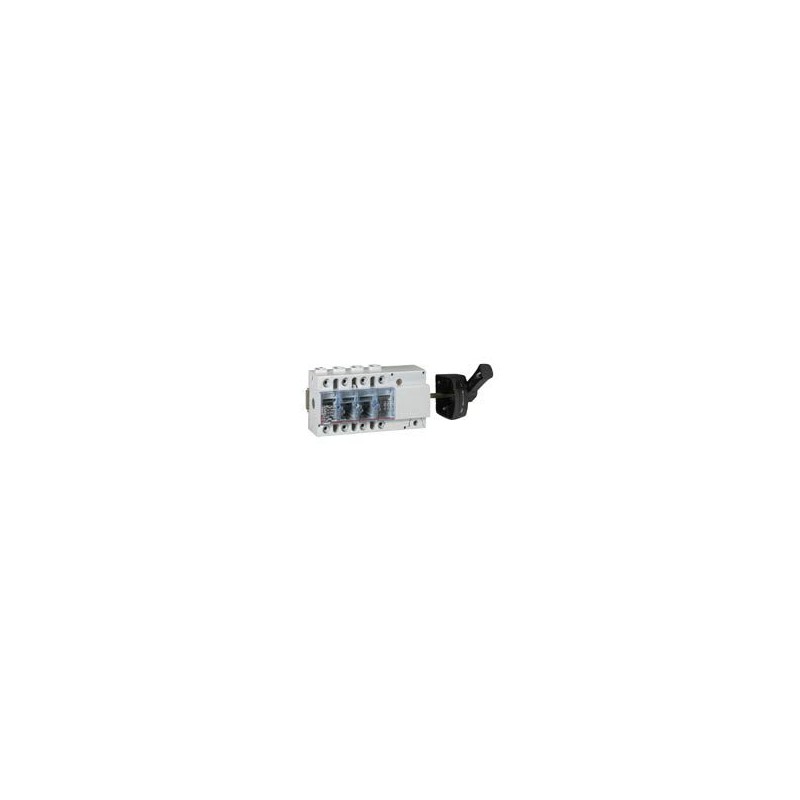

022546 LEGRAND SWITCH VISTOP 125A 4P ML
022546
LEGRAND
SWITCH VISTOP 125A 4P ML
Isolating switch Vistop - 125 A - 4P - side handle, black - 9 modules
Vistop disconnect switch - 125A - 4P - side control - black
Low-voltage industrial components > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)2.313
- Weight (g)861.00
- Possibility to add auxiliary contact Cat.No 0 227 07
- Side handle
- 4P
- Connection : Key 6 sides
- No of 17.5 mm modules : 9
- Safety switches for on-load circuit breaking by visible isolation of the contacts
- Double break type load switching with self cleaning contacts by rapid make and break movements
- Fixing on rail EN 60715 or screw fixing (only on rail for Vistop 63 A)
- Padlockable handle in open position: 1 to 3 padlocks Cat.No 0 227 97
- 2 versions for mounting on faceplate:
- right side handle, supplied with seal to maintain the IP protection for the enclosures (up to IP 55), screws, self adhesive drilling template, extension rod (30 to 170 mm) for creating an external angle
- direct front handle or external (for Vistop 63 to 160 A)
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 3.5 kA |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Toggle |
| Conditioned rated short-circuit current Iq (EF001444) | 12 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 70 kW |
| Rated permanent current Iu (EF001389) | 125 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | Yes |
| Switching power at 400 V (EF009166) | 70 kW |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Colour control element (EF007167) | Black |
| Rated permanent current at AC-21, 400 V (EF009165) | 125 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 690 V |
| Degree of protection (IP), front side (EF003118) | IP2X |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 022546 EN_022512.pdf | 328 Kbytes |
 |
