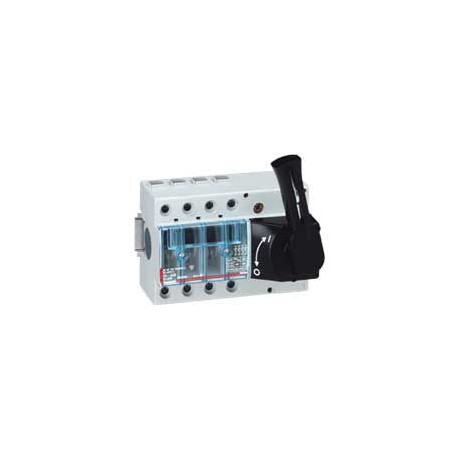

022539 LEGRAND SWITCH VISTOP 125A 4P MF
022539
LEGRAND
SWITCH VISTOP 125A 4P MF
Vistop 125A 4 Pole Switch Disconnector with Front Handle
Vistop disconnect switch - 125A - 4P - front control - black
Low-voltage industrial components > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | No |
| Version as emergency stop installation | No |
| Version as reversing switch | No |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operating voltage | 690-690 V |
| Rated permanent current Iu | 125 A |
| Rated permanent current at AC-21, 400 V | 125 A |
| Rated short-time withstand current lcw | 3.5 kA |
| Rated operation power at AC-23, 400 V | 70 kW |
| Switching power at 400 V | 70 kW |
| Conditioned rated short-circuit current Iq | 12 kA |
| Number of poles | 4 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
|---|---|
| Motor drive optional | No |
| Motor drive integrated | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | Yes |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Colour control element | Black |
| Type of control element | Wing knob |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP2X |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 3.5 kA |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Toggle |
| Conditioned rated short-circuit current Iq (EF001444) | 12 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 70 kW |
| Rated permanent current Iu (EF001389) | 125 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | Yes |
| Switching power at 400 V (EF009166) | 70 kW |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Colour control element (EF007167) | Black |
| Rated permanent current at AC-21, 400 V (EF009165) | 125 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 690 V |
| Degree of protection (IP), front side (EF003118) | IP2X |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 022539 EN_022512.pdf | 328 Kbytes |
 |
