LEGRANDINDUSTRIAL CONTACTORS / SWITCHES022515 LEGRAND VISTOP SWITCH 63A 4P MF

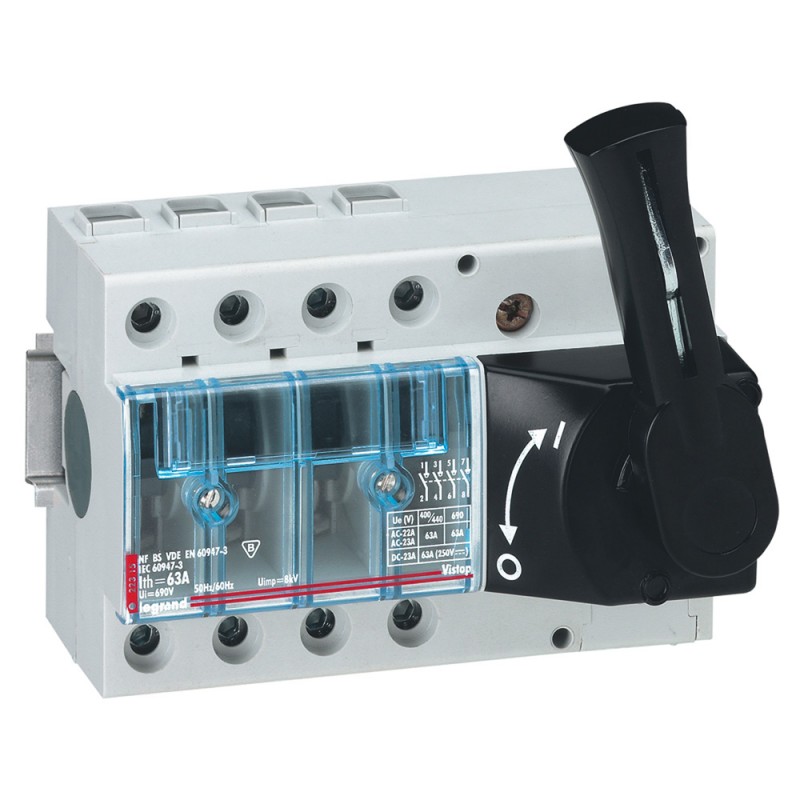

LEGRAND 022515 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

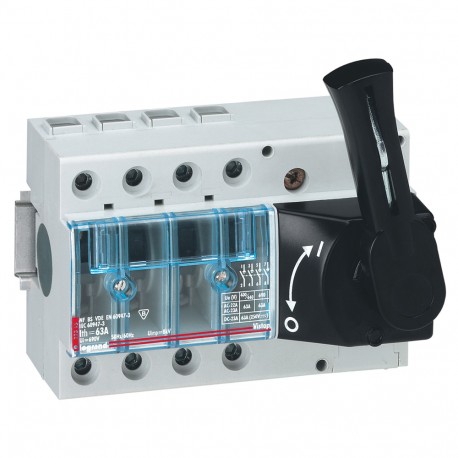

022515 LEGRAND VISTOP SWITCH 63A 4P MF

Code: 022515

Manufacturer: LEGRAND

Description:

VISTOP SWITCH 63A 4P MF
SWITCH VISTOP 63A 4P MF
Vistop 63A 4 Pole Switch Disconnector with Front Handle
Vistop disconnect switch - 63A - 4P - front control - black

Categories:

  • Low-voltage industrial components > Switch disconnector
  • LEGRAND > INDUSTRIAL CONTACTORS / SWITCHES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 93,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Conform to BS EN 60947-3 Bureau Veritas approved Safety switches for on-load circuit breaking by visible isolation of the contacts Double break type load switching with self cleaning contacts by rapid make and break movements Fixing on rail 4 EN 60715 or screw fixing (only on rail for Vistop 63 A) 2 versions for mounting on faceplate: * left or right side handle, supplied with seal to maintain the IP protection of the enclosure (up to IP 55), screws, self adhesive drilling template, extension rod (30 to 170mm) for creating an external angle * direct front handle or external handle with Cat. No. 0227 32
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Version as emergency stop installationNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690 V
Rated operating voltage690-690 V
Rated permanent current Iu63 A
Rated permanent current at AC-21, 400 V63 A
Rated short-time withstand current lcw2.5 kA
Rated operation power at AC-23, 400 V35 kW
Switching power at 400 V35 kW
Conditioned rated short-circuit current Iq7 kA
Number of poles4
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Motor drive optionalNo
Motor drive integratedNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting centreYes
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Colour control elementBlack
Type of control elementWing knob
InterlockableYes
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP2X

ETIM for 022515 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value690 V
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameRated short-time withstand current lcw (EF007050)
Feature value2.5 kA
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameType of control element (EF006976)
Feature valueToggle
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value7 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value35 kW
Feature nameRated permanent current Iu (EF001389)
Feature value63 A
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueYes
Feature nameSuitable for front mounting centre (EF007248)
Feature valueYes
Feature nameSwitching power at 400 V (EF009166)
Feature value35 kW
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value63 A
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameRated operating voltage (EF001435)
Feature value690 V
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP2X

DATASHEET - PDF

Title
Size
Type
022515 EN_022512.pdf
328 Kbytes
