LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS021142 LEGRAND XL3 DIN PROFILE 36 MODULES

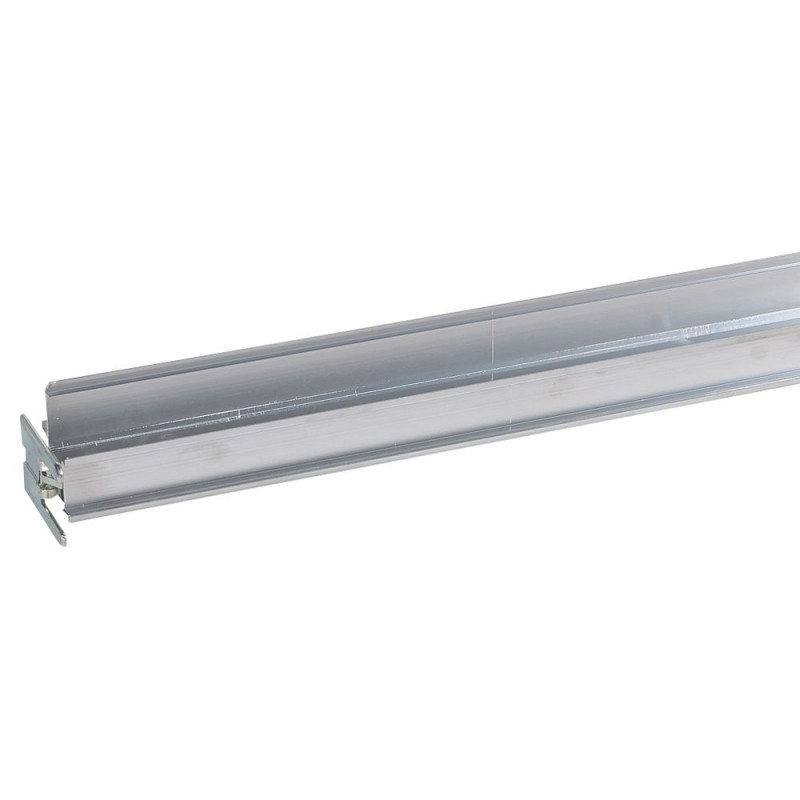

LEGRAND 021142 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

021142 LEGRAND XL3 DIN PROFILE 36 MODULES

Code: 021142

Manufacturer: LEGRAND

Description:

XL3 DIN PROFILE 36 MODULES
XL3 PROFILE DIN 36 MODULES
Symmetrical rail - for fixing modular device in XL³ 6300 enclosure - 36 modules
Symmetrical rails for mounting modular equipment in XL³ 6300 cabinet

Categories:

  • Energy distribution systems > Mounting rail
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 77,11 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)16.225
  • Weight (g)1 947.00
Product characteristics
Fixing modular devices on symmetrical rail
Symmetrical rail
  • Comprising: an aluminium profile rail and two 2-position fixing brackets
  • Fit onto functional uprights
  • For fixing on XL³ 6300 functional uprights
  • 36 modules
General characteristics
Distribution enclosures XL³ 6300
  • IP 30 - IK 07
  • Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2200 mm, usable faceplate height 2000 mm

ETIM for 021142 Power distribution systems (EC001285)

Feature nameHeight (EF000040)
Feature value35 mm
Feature nameModel (EF000010)
Feature valueDIN rail (top hat rail) 15 mm
Feature nameMaterial thickness (EF000386)
Feature value15 mm
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature namePunch shape (EF001457)
Feature valueNone
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameLength (EF001438)
Feature value1300 mm

DATASHEET - PDF

Title
Size
Type
021142 EN_021142.pdf
129 Kbytes
