LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020936 LEGRAND MET TOP. DPX 1600 FIXED PAV+CM

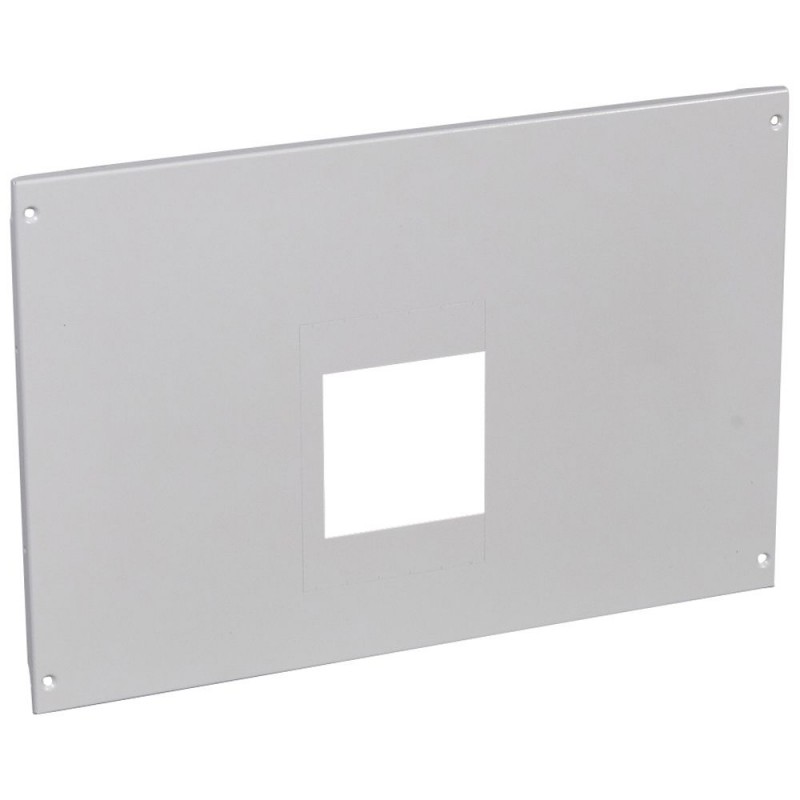

LEGRAND 020936 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020936 LEGRAND MET TOP. DPX 1600 FIXED PAV+CM

Code: 020936

Manufacturer: LEGRAND

Description:

MET TOP. DPX 1600 FIXED PAV+CM
CAP MET.DPX 1600 FIXED PAV+CM
Metal faceplate XL³ 4000 - 1 DPX 1600 front terminals with motor-driven handle
Metal terminal cover XL³ 4000 - 1 DPX³ 1600 horizontal anterior connection

Categories:

  • Cabinet enclosures > Front plate (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 72,66 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)8.00
  • Weight (g)2 715.00
Product characteristics
Metal faceplates for devices in horizontal position
For 1 DPX³ 1600 front terminals with motor-driven handle
  • 24 modules
  • Hinges Cat.No 0 209 59 available as an option
  • With captive screws
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles

ETIM for 020936 Cabinets and enclosures (EC000456)

Feature nameHeight (EF000040)
Feature value400 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameSuitable for enclosure building width (EF000326)
Feature value725 mm
Feature nameWidth (EF000008)
Feature value600 mm
Feature nameSuitable for enclosure building height (EF009583)
Feature value2200 mm

DATASHEET - PDF

Title
Size
Type
020936 EN_020936.pdf
134 Kbytes
