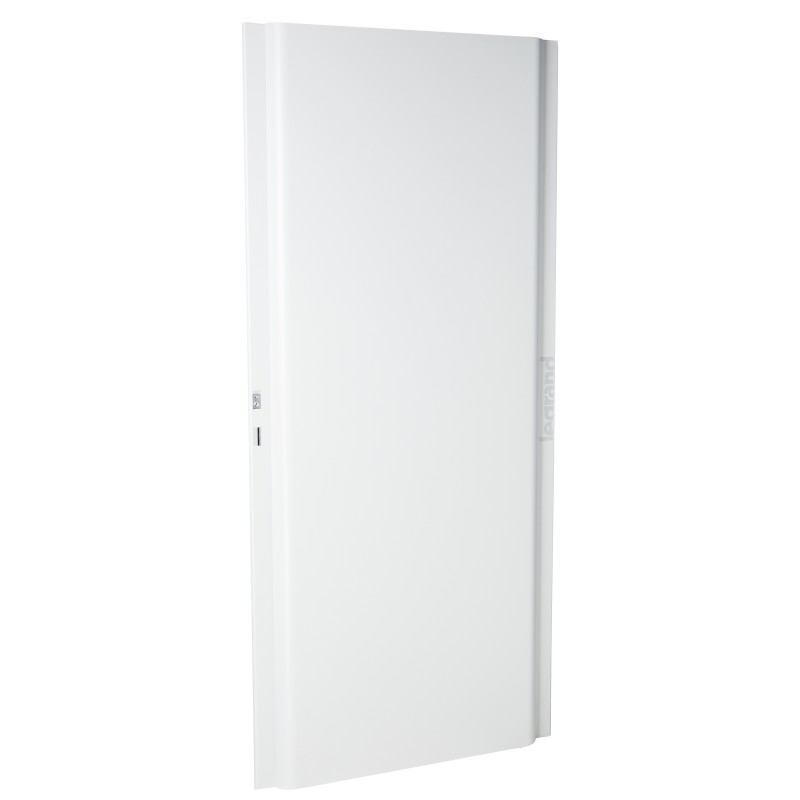

020862 LEGRAND XL3 DOOR METAL L975 H2000
020862
LEGRAND
XL3 DOOR METAL L975 H2000
Reversible curved metal door XL³ 4000 - width 975 mm - Height 2200 mm
Equippable metal door XL³ 4000 - L975mm H2200mm
Cabinet enclosures > Door/operating panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)185.22
- Weight (g)28 371.00
- Supplied with handle
- Interchangeable key barrels, to be ordered separately
- For mounting on front, rear or side
- Width 975 mm
- Height : 2200 mm
- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 975 mm |
| Model (EF000010) | Compartment door |
| Degree of protection (IP) (EF005474) | IP40 |
| Version as glazed door (EF006966) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Lacquered |
| Depth (EF000049) | 60 mm |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 2000 mm |
| EMC-version (EF001062) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 020862 EN_020862.pdf | 131 Kbytes |
 |
