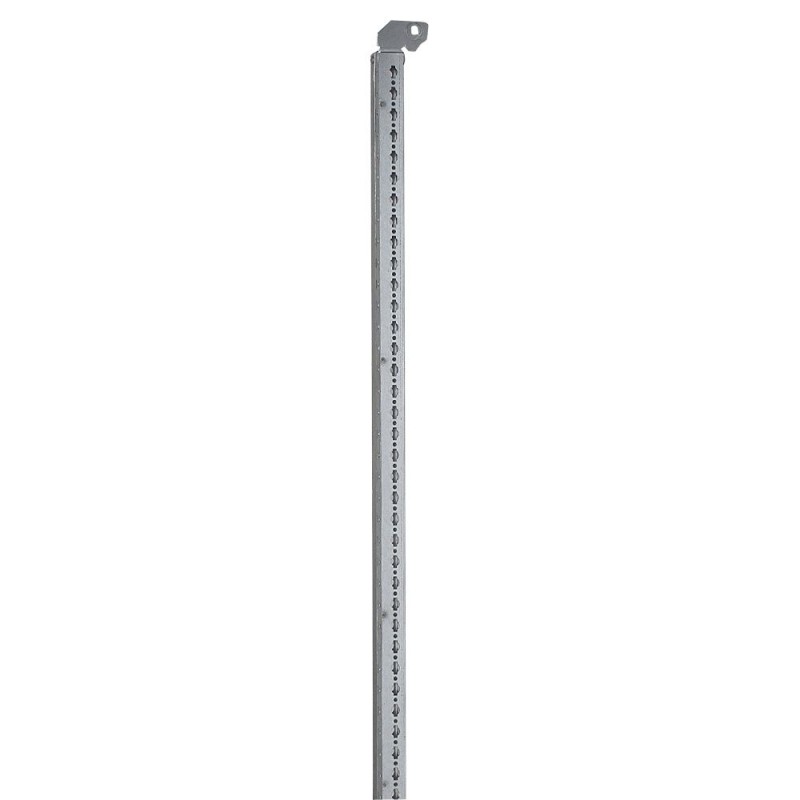

020856 LEGRAND XL3-FIXED FRAME WITH CELL H2200
020856
LEGRAND
XL3-FIXED FRAME WITH CELL H2200
Support frame XL³ 4000 - fixed - H. 2200 - for enclos. width 975 with sleeves
Frame for terminal cover covers XL³ 4000 - fixed - cabinet L. 975 H2200mm
Cabinet enclosures > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)9.00
- Weight (g)4 100.00
Support frame for faceplates
- Fixed for enclosure width 975 mm with internal cable sleeves
- Height : 2200 mm
- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 2200 mm |
| Model (EF000010) | Other |
| Material (EF002169) | Metal |
| Suitable for enclosure building width (EF000326) | 975 mm |
| Suitable for enclosure building depth (EF000327) | 975 mm |
| Suitable for enclosure building height (EF009583) | 2200 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 020856 EN_020856.pdf | 130 Kbytes |
 |
