LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020809 LEGRAND XL3 SHARE. DMX3 T2 FRONT

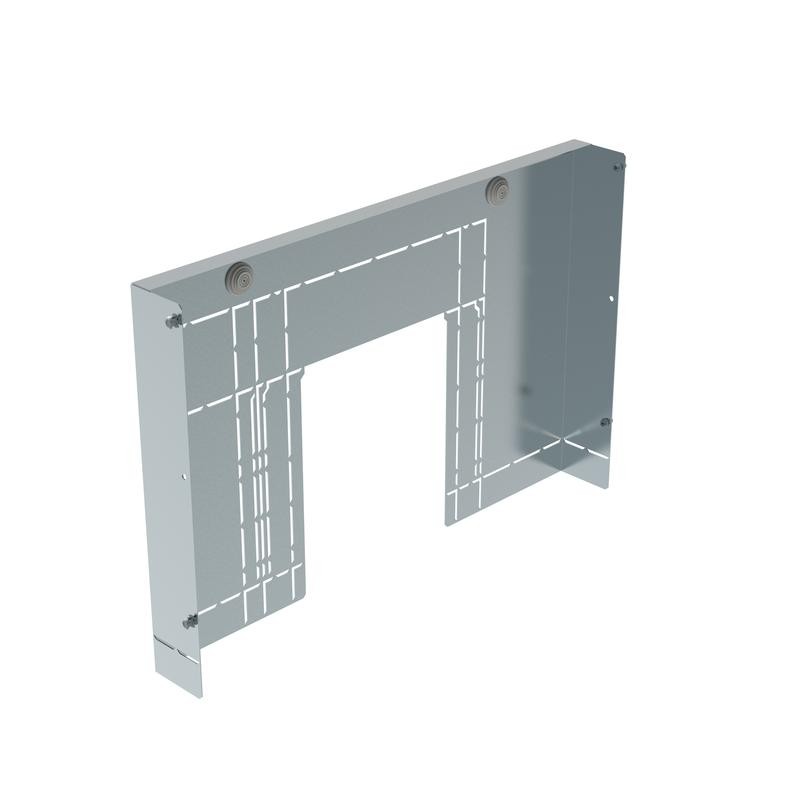

LEGRAND 020809 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020809 LEGRAND XL3 SHARE. DMX3 T2 FRONT

Code: 020809

Manufacturer: LEGRAND

Description:

XL3 SHARE. DMX3 T2 FRONT
XL3 COMPART. DMX3 T2 FRONT
Front panel partitioning DMX³ for XL³ 4000/6300 - width 36 modules
Front face compartmentalization DMX³ XL³ 4000 - 36mod

Categories:

  • Cabinet enclosures > Divider panel (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 268,40 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)48.535
  • Weight (g)5 785.00
Product characteristics
Front panel partitioning DMX³
Width 36 modules
  • For forms:
    • 2a (rear terminals connection)
    • 3a (rear terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300

ETIM for 020809 Cabinets and enclosures (EC002525)

Feature nameFor internal separation form 3b (EF009589)
Feature valueNo
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameFor internal separation form 3a (EF009588)
Feature valueYes
Feature nameSurface finishing (EF006569)
Feature valueOther
Feature nameFor internal separation form 2b (EF009587)
Feature valueNo
Feature nameFor internal separation form 2a (EF009586)
Feature valueYes
Feature nameFor internal separation form 4b (EF009591)
Feature valueNo
Feature nameFor internal separation form 4a (EF009590)
Feature valueNo
Feature nameSuitable for enclosure building width (EF000326)
Feature value975 mm
Feature nameWith cable entry (EF000325)
Feature valueYes
Feature nameConstruction type (EF000767)
Feature valueIndividual part
Feature nameWidth (EF000008)
Feature value850 mm

DATASHEET - PDF

Title
Size
Type
020809 EN_020809.pdf
127 Kbytes
