LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020611 LEGRAND XL3 PLATE DPX3 VERT 24 MOD

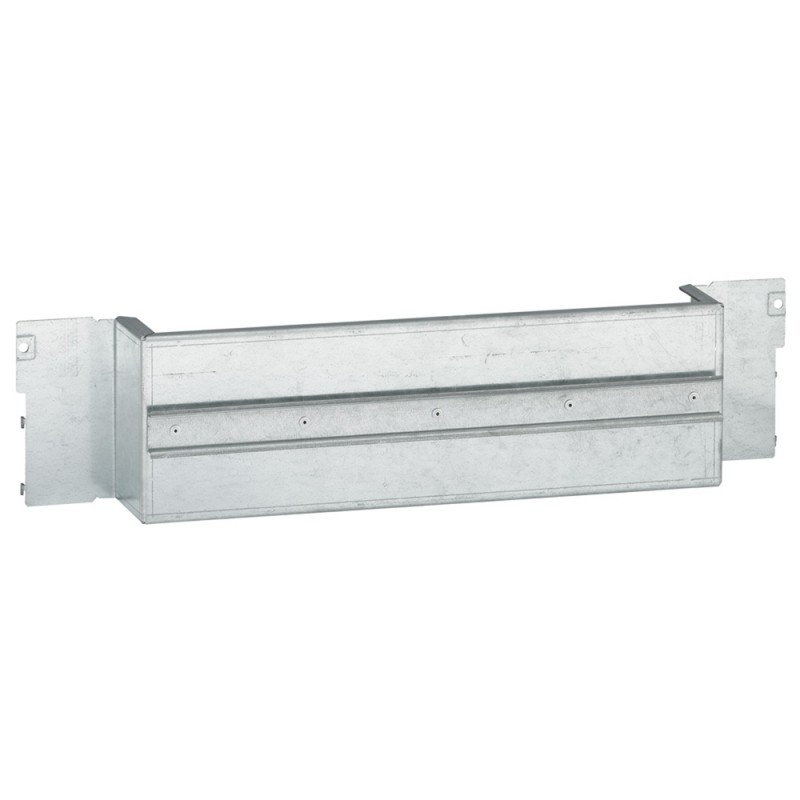

LEGRAND 020611 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020611 LEGRAND XL3 PLATE DPX3 VERT 24 MOD

Code: 020611

Manufacturer: LEGRAND

Description:

XL3 PLATE DPX3 VERT 24 MOD
Plate with rail XL³ 800/4000 - for DPX³ in vertical position - 24 modules
XL³ 800/4000 Mounting Plate for DPX³ with Mounting Adapter - 24mod

Categories:

  • Energy distribution systems > Mounting plate for distribution board
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 44,62 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)11.121
  • Weight (g)2 266.00
Product characteristics
Plates for fixed version DPX³ 160/250 with front terminals
  • Direct fixing on functional uprights
Devices in vertical position
  • 24 modules
  • Equipped with a rail symmetrical for fixing DPX³
  • The DPX³ must be equipped with a fixing plate Cat.Nos 4 210 68/69/71/72 or plate for manual supply inverter Cat.No 4 210 58
  • Designed for simultaneous mounting of DPX³ 160/250 and modular equipment (with spacer Cat.No 0 262 99)
General characteristics
Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250

ETIM for 020611 Power distribution systems (EC000213)

Feature nameHeight (EF000040)
Feature value300 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature namePerforated (EF000115)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameWidth (EF000008)
Feature value600 mm

DATASHEET - PDF

Title
Size
Type
020611 EN_020611.pdf
133 Kbytes
