LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020608 LEGRAND XL3 DPX3 VERT MDO ROT PLATE

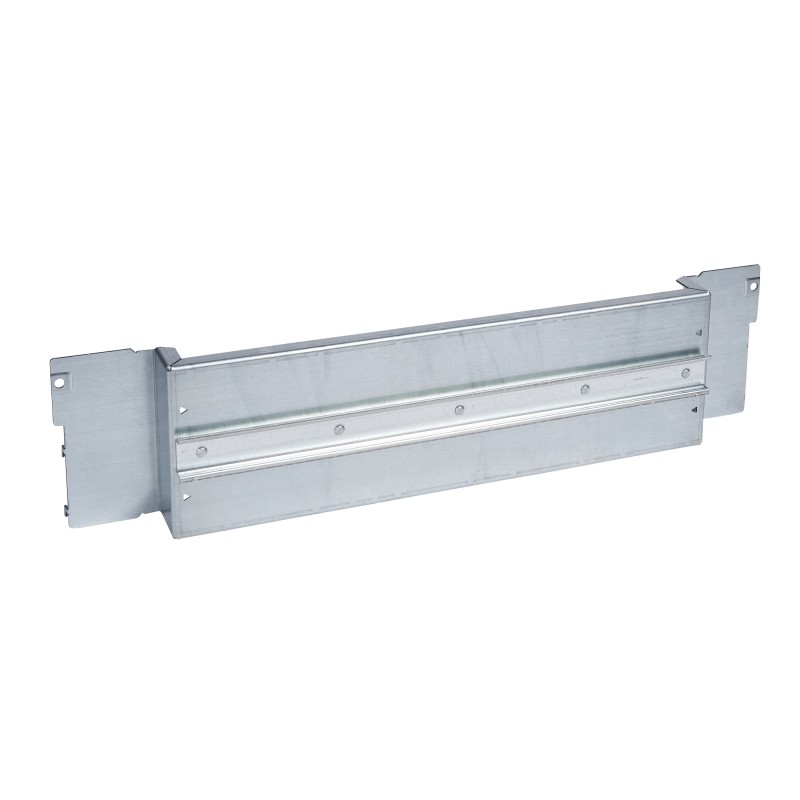

LEGRAND 020608 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020608 LEGRAND XL3 DPX3 VERT MDO ROT PLATE

Code: 020608

Manufacturer: LEGRAND

Description:

XL3 DPX3 VERT MDO ROT PLATE
XL3 PLATE DPX3 VERT MDO ROT
Plate XL³ 800/4000 - for DPX³ with direct rotary handle - in vertical position
XL³ 800/4000 mounting plate for DPX³ with rotary knob - 24mod

Categories:

  • Energy distribution systems > Mounting plate for distribution board
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 48,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)7.812
  • Weight (g)2 074.00
Product characteristics
Plates for fixed version DPX³ 160/250 with front terminals
  • Direct fixing on functional uprights
Devices in vertical position
  • 24 modules
  • Plate for DPX³ with direct rotary handle
  • The DPX³ must be equipped with a fixing plate Cat.Nos 4 210 68/69
General characteristics
Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250

ETIM for 020608 Power distribution systems (EC000213)

Feature nameHeight (EF000040)
Feature value300 mm
Feature nameMaterial (EF002169)
Feature valueSteel
Feature namePerforated (EF000115)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueLacquered
Feature nameWidth (EF000008)
Feature value600 mm

DATASHEET - PDF

Title
Size
Type
020608 EN_020608.pdf
132 Kbytes
