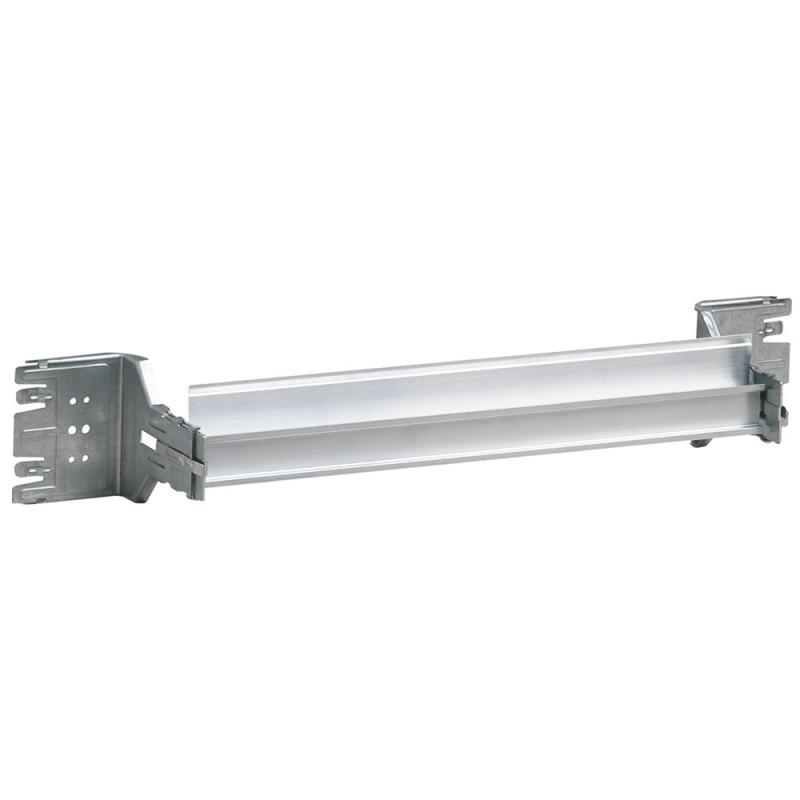

LEGRAND 020601 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020601 LEGRAND XL3 RAIL ALUM. 2 POSIC. 24 MOD

Code: 020601

Manufacturer: LEGRAND

Description:

XL3 RAIL ALUM. 2 POSIC. 24 MOD
XL3 RAIL ALUM. 2 POS. 24 MOD
Rail - for XL³ 800/4000 - for fixing fonctional uprights - 24 modules
Reversing switches, T3, 32 A, flush mounting, 4 contact unit(s), Contacts: 7, 45 °, momentary/maintained, With 0 (Off) position, with spring-return fr

Categories:

  • Energy distribution systems > Mounting rail
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 22,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)4.185
  • Weight (g)970.00
Product characteristics
Fixing devices on symmetrical rail
Symmetrical rails
  • Comprising: an aluminium profile rail and two 2-position fixing brackets
  • Accept HX³ 125 A plug-in connection row distribution blocks
  • Fit onto functional uprights
  • For mounting DPX³ using fixing plates
  • 24 modules
  • For fixing on XL³ 800 and XL³ 4000 functional uprights
  • Accept wire guide Cat.No 4 052 25
General characteristics
Equipment for XL³ 4000 - for modular devices, Vistop, DPX³ 160/250, DPX-IS 250 on symmetrical rail

ETIM for 020601 Power distribution systems (EC001285)

Feature nameHeight (EF000040)
Feature value61.2 mm
Feature nameModel (EF000010)
Feature valueG-rail
Feature nameMaterial thickness (EF000386)
Feature value1.3 mm
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature namePunch shape (EF001457)
Feature valueNone
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameLength (EF001438)
Feature value433.5 mm
