LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020530 LEGRAND XL3 LIT DOUBLE PARTIAL CHASSIS

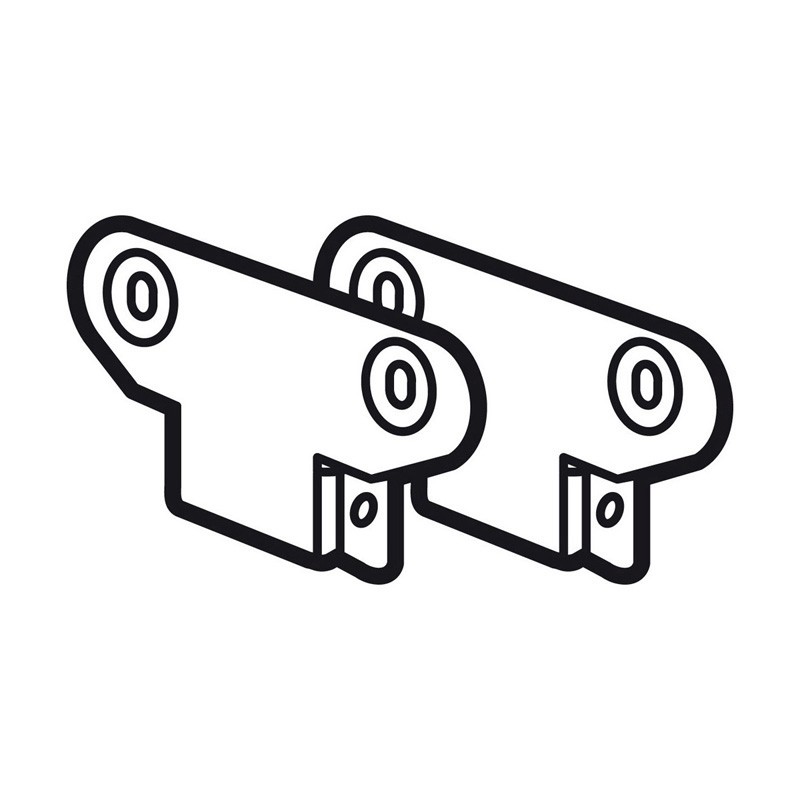

LEGRAND 020530 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020530 LEGRAND XL3 LIT DOUBLE PARTIAL CHASSIS

Code: 020530

Manufacturer: LEGRAND

Description:

XL3 LIT DOUBLE PARTIAL CHASSIS
XL3 LIT DOUBLE CHASSIS PART
Fixing plates (4)XL³ 4000 - for reduced functional uprights 205 12
XL³ 4000 cabinet bracket set for installing a partial double chassis

Categories:

  • Energy distribution systems > Mounting plate for distribution board
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 68,51 €

Unit Price: 34,255 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)2
  • Volume (dm3)3.675
  • Weight (g)1 157.00
Product characteristics
Equipment
Equipments for partial chassis
  • Kit consisting of 4 fixing plates for reduced functional uprights Cat.No 0 205 12
  • To be used when assembling a double partial chassis
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

ETIM for 020530 Power distribution systems (EC000213)

Feature nameMaterial (EF002169)
Feature valueSteel
Feature namePerforated (EF000115)
Feature valueYes
Feature nameSurface protection (EF000139)
Feature valueUntreated

DATASHEET - PDF

Title
Size
Type
020530 EN_020530.pdf
133 Kbytes
