LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020520 LEGRAND XL3 INTERMEDI STRUCTURAL ASSEMBLY

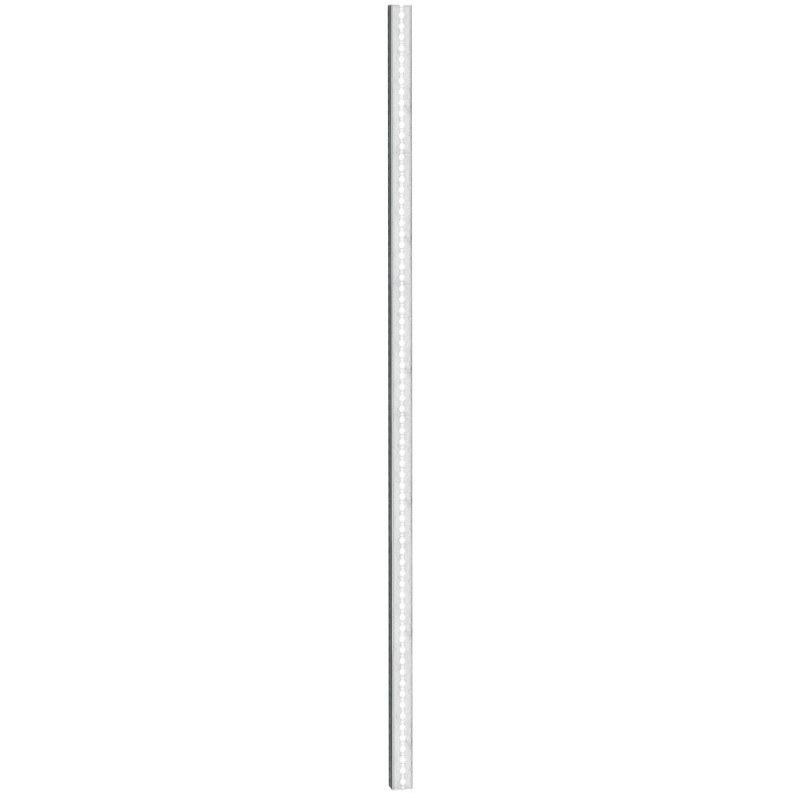

LEGRAND 020520 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020520 LEGRAND XL3 INTERMEDI STRUCTURAL ASSEMBLY

Code: 020520

Manufacturer: LEGRAND

Description:

XL3 INTERMEDI STRUCTURAL ASSEMBLY
XL3 MONT STRUCTURAL INTERMEDI
Intermediate structural uprights XL³ 4000 - fit onto roof base - Height 2000 mm
Intermediate structural uprights XL³ 4000 H2000mm

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 51,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)9.00
  • Weight (g)2 600.00
Product characteristics
Enclosures and cable sleeves modular metal
Intermediate structural upright
  • Fits on the structure of the enclosure "roof-base"
  • Height : 2000 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

ETIM for 020520 Cabinets and enclosures (EC002620)

Feature nameHeight (EF000040)
Feature value1800 mm
Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueMetal
Feature nameSuitable for enclosure building height (EF009583)
Feature value2000 mm

DATASHEET - PDF

Title
Size
Type
020520 EN_020520.pdf
130 Kbytes
