LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020518 LEGRAND XL3 SOCKET 725X975

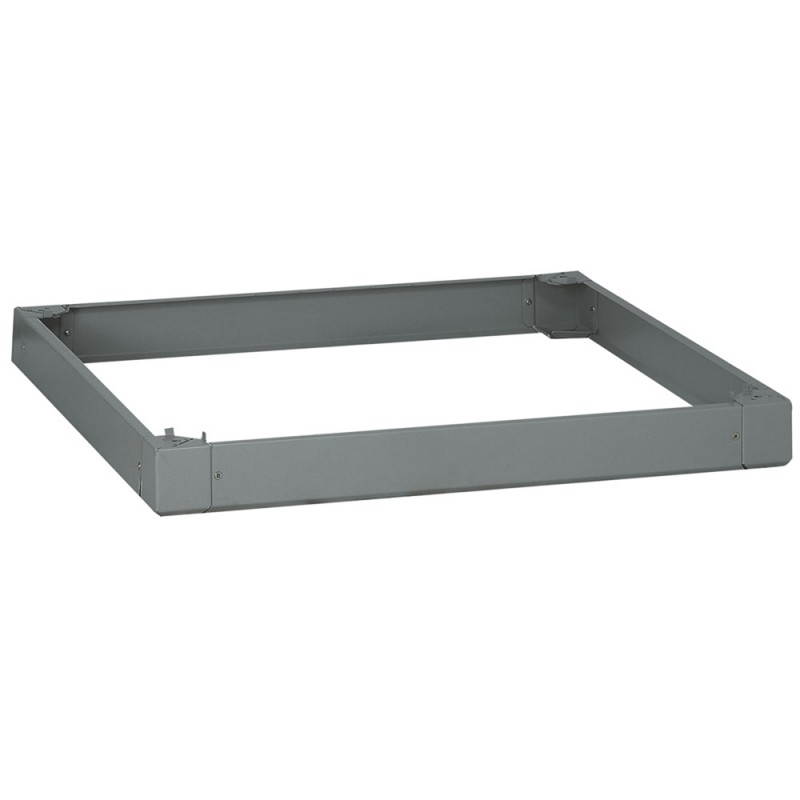

LEGRAND 020518 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020518 LEGRAND XL3 SOCKET 725X975

Code: 020518

Manufacturer: LEGRAND

Description:

XL3 SOCKET 725X975
Plinth XL³ 4000 - height 100 mm - 975x725 mm
XL³ 4000 H100mm - 975x725mm Attachable Socket

Categories:

  • Cabinet enclosures > Base/base element (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 352,64 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)21.00
  • Weight (g)7 822.00
Product characteristics
Enclosures and cable sleeves modular metal
Plinths that can be placed side by side
  • Height : 100 mm
  • Width : 975 mm
  • Depth : 725 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

ETIM for 020518 Cabinets and enclosures (EC000721)

Feature nameHeight (EF000040)
Feature value100 mm
Feature nameModel (EF000010)
Feature valueBase complete
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSuitable for cable patch (EF007251)
Feature valueNo
Feature nameSuitable for aeration/de-aeration (EF000324)
Feature valueNo
Feature nameDepth (EF000049)
Feature value975 mm
Feature nameSuitable for enclosure building width (EF000326)
Feature value725 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameSuitable for enclosure building depth (EF000327)
Feature value975 mm
Feature nameWidth (EF000008)
Feature value725 mm

DATASHEET - PDF

Title
Size
Type
020518 EN_020518.pdf
132 Kbytes
