LEGRANDXL3 800-4000 ENERGY DISTRIBUTION CABINETS020513 LEGRAND XL3 MONT FUNCTIONALS H2000

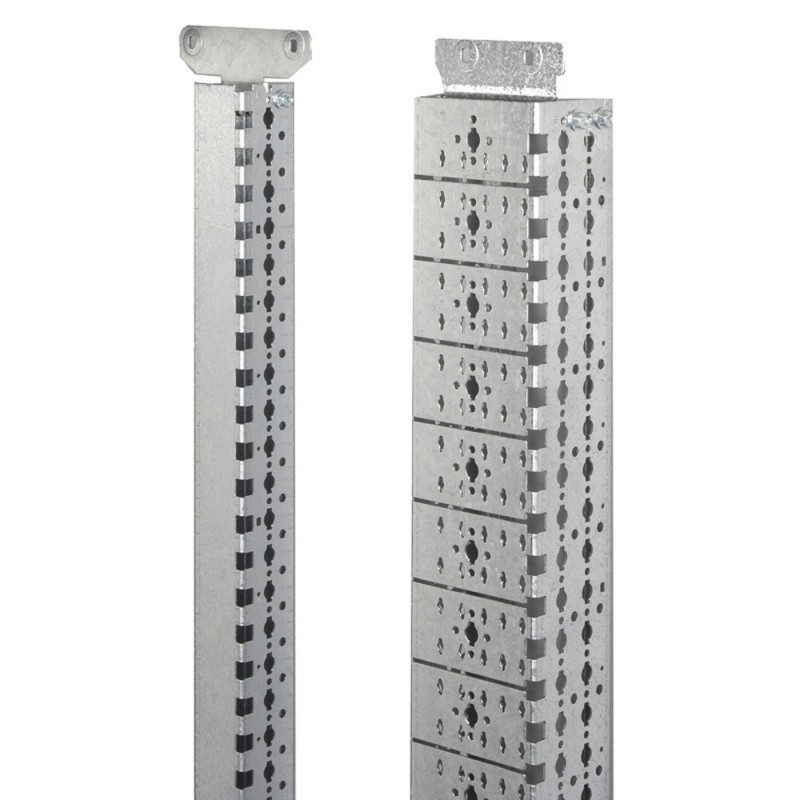

LEGRAND 020513 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020513 LEGRAND XL3 MONT FUNCTIONALS H2000

Code: 020513

Manufacturer: LEGRAND

Description:

XL3 MONT FUNCTIONALS H2000
XL3 MONT FUNCTIONAL H2000
Functional uprights XL³ 4000 (2) -for enclosure without int. cable sleeve -H.2000 mm
Voltmeter selector switches, T3, 32 A, rear mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 0-1-2-0-3-4, Design num

Categories:

  • Cabinet enclosures > Component for installation (switchgear cabinet)
  • LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 96,24 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)47.00
  • Weight (g)12 300.00
Product characteristics
Equipment
Functional uprights
  • Set of 2 functional uprights
  • For fixing mounting equipment (faceplate, rails…)
  • For enclosure without internal cable sleeve
  • Height : 2000 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

ETIM for 020513 Cabinets and enclosures (EC002620)

Feature nameHeight (EF000040)
Feature value2000 mm
Feature nameModel (EF000010)
Feature valueOther
Feature nameMaterial (EF002169)
Feature valueMetal
Feature nameSuitable for enclosure building height (EF009583)
Feature value2000 mm

DATASHEET - PDF

Title
Size
Type
020513 EN_020513.pdf
136 Kbytes
