020508 LEGRAND XL3 BASE+ROOF ANCH975 PROF725
020508
LEGRAND
XL3 BASE+ROOF ANCH975 PROF725

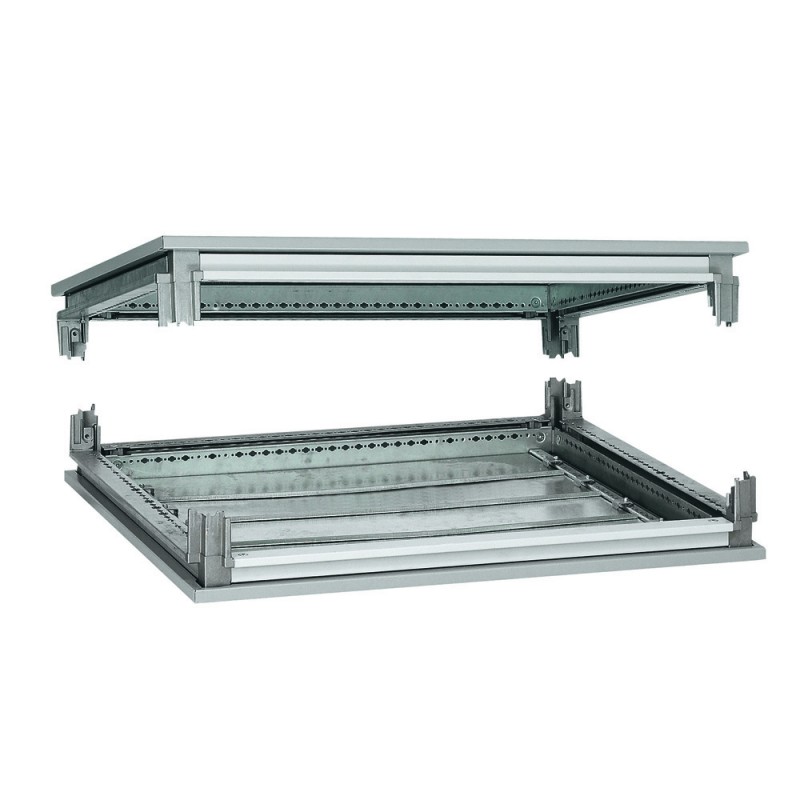

Roof base for enclosure XL³ 4000 - depth 725 mm - width 975 mm
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
* Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Often bought together
▲More info
▲- Pack (number of units)1
- Volume (dm3)216.00
- Weight (g)40 200.00
Product characteristics
Enclosures and cable sleeves modular metalRoof-base for enclosure
- Fitted with cable entry plates
- Take the structural uprights
- Depth : 725 mm
- Width external : 975 mm
- Width usable : 850 mm
General characteristics
Distribution enclosures XL³ 4000- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LEGRAND EN.pdf | 38 Mbytes |
|
| 020508 EN_020508.pdf | 136 Kbytes |
|
