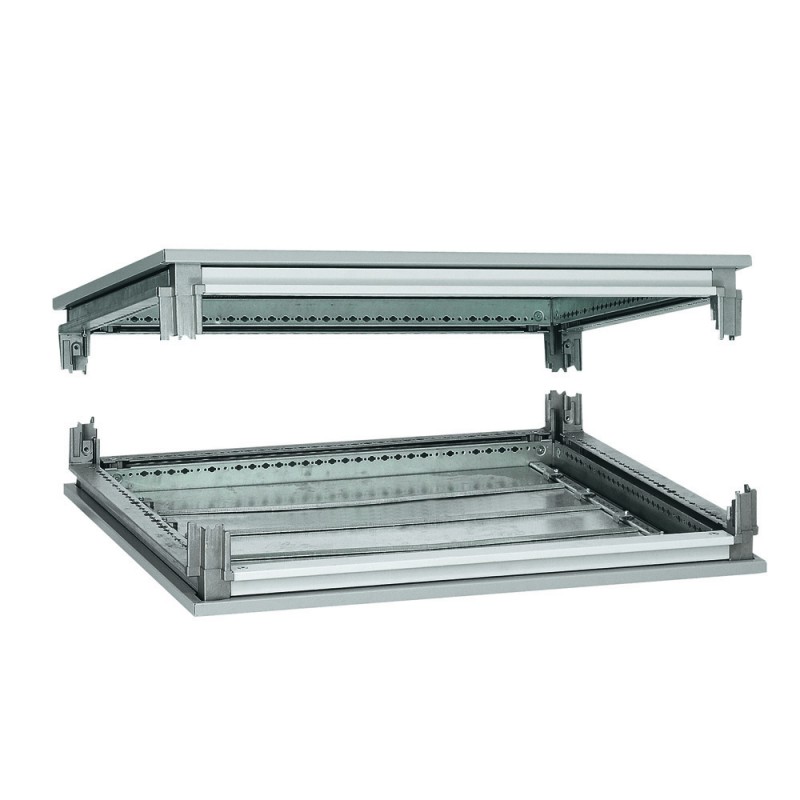

020507 LEGRAND XL3 BASE+ROOF ANCH975 PROF475
020507
LEGRAND
XL3 BASE+ROOF ANCH975 PROF475
Roof base for enclosure XL³ 4000 - depth 475 mm - width 975 mm
Ceiling - base for XL³ 4000 cabinet - Depth 475mm - L975mm
Cabinet enclosures > Top-/floor cover element (enclosure/switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)132.00
- Weight (g)32 465.00
Roof-base for enclosure
- Fitted with cable entry plates
- Take the structural uprights
- Depth : 475 mm
- Width external : 975 mm
- Width usable : 850 mm
- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
| Feature Name | Feature Value |
|---|---|
| Suitable for outdoor set-up (EF005774) | No |
| Height (EF000040) | 150 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Suitable for bottom planking (EF009585) | Yes |
| Suitable for roof planking (EF009584) | Yes |
| With de-aeration (EF001161) | No |
| Depth (EF000049) | 475 mm |
| Colour (EF000007) | Grey |
| Suitable for enclosure building width (EF000326) | 975 mm |
| RAL-number (EF000116) | 7029 |
| With cable entry (EF000325) | Yes |
| Suitable for enclosure building depth (EF000327) | 475 mm |
| Width (EF000008) | 975 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 020507 EN_020501.pdf | 547 Kbytes |
 |
