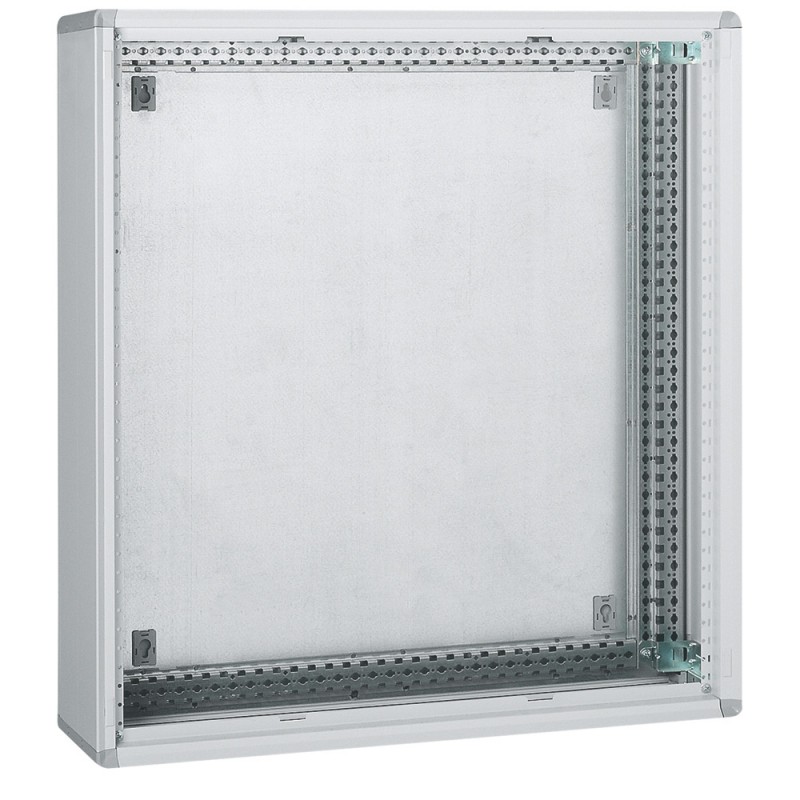

020406 LEGRAND XL3 METAL CASE L910 H1050
020406
LEGRAND
XL3 METAL CASE L910 H1050
Distribution box XL3 800 - 1050x910x230 mm
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
* Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Boxes equippable Width 910 mm - Can be integrated a cell side 36 or 24 modules (if cell lateral internal) - total Height: 1050 mm - Height to caps cubrebornas: 1000 mm - outer Width: 910 mm - Width: 850 mm - depth: 230 mmGeneral characteristics
XL3 800 - distribution boxes and switchgear side. - IP 43 - IK 08 with kit sealing IP43 and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - to- Cell metal - Suitable for appliances up to 800 (700 if IP top 30) - fire Resistance according to IEC 60695-2-11: 750 °C/5 sec - Capacity 24 and 36 modules per row - RAL 7035 (socket RAL 7004) - Supplied flat with studs functional set in the background, plate cable entry cut-out accessories and of association (horizontal and vertical)Reviews (0) ▲
