LEGRANDXL3 160-400 ENERGY DISTRIBUTION CABINETS020139 LEGRAND XL3 400 SIDE CELL 1900H

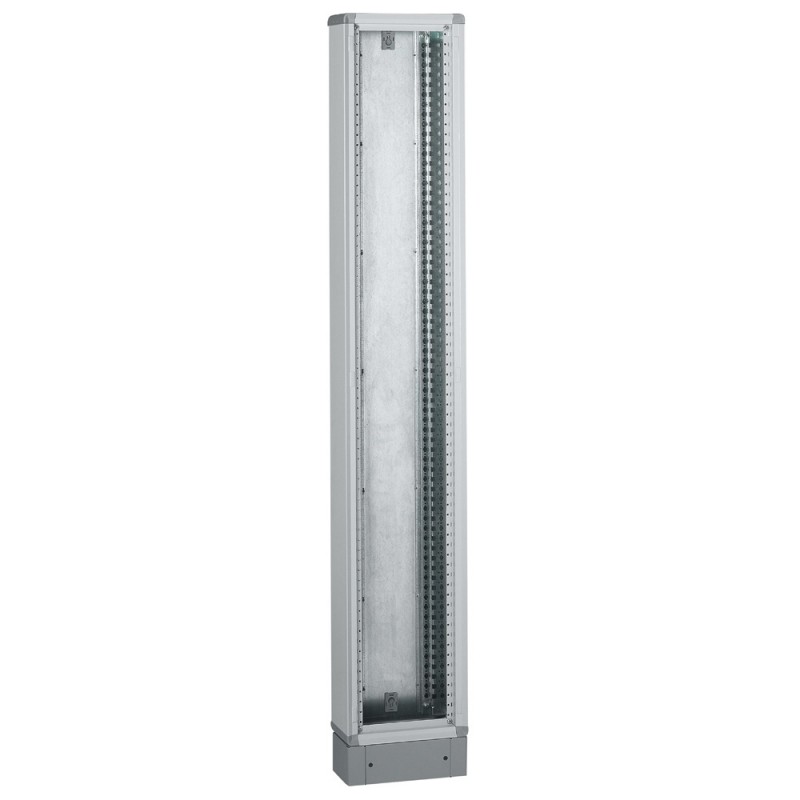

LEGRAND 020139 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020139 LEGRAND XL3 400 SIDE CELL 1900H

Code: 020139

Manufacturer: LEGRAND

Description:

XL3 400 SIDE CELL 1900H
XL3 400 CELL SIDE 1900H
Cell side XL3 400 - for metal cabinet ref. 201 19 - Alt 1900 - grey RAL 7035
Side cell XL³ 400 - Height 1900 - Gray RAL 7035

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • LEGRAND > XL3 160-400 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 368,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Metal cabinets - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door Cells external side - Include plinth height 100 mm - total Height: 1900 mm - Height to caps cubrebornas: 1750 mm - total Width: 310 mm - working Width: 250 mm - depth: 175 mm

General characteristics

XL3 400 - boxes and control cabinets - Suitable for devices up to 400 A - fire Resistance according to IEC 60695-2-11: 750 °C - Capacity: 24 modules per row. RAL 7035 (socket RAL 7004) - The door must be ordered separately - Supplied with studs, functional set in the bottom of the wardrobe, plate cable entry cut-out and accessories link (horizontal and vertical) - For information on resistance in specific environments, see the statement

ETIM for 020139 Cabinets and enclosures (EC000261)

Feature nameSuitable for wall built-in (EF007536)
Feature valueNo
Feature nameHeight (EF000040)
Feature value1900 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP43
Feature nameNumber of doors (EF000122)
Feature value1
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameNumber of locks (EF000123)
Feature value1
Feature namePitched roof (EF009278)
Feature valueNo
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameWith ventilation door (EF006279)
Feature valueNo
Feature nameWith glazed door (EF001089)
Feature valueNo
Feature nameWith rear door (EF007381)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameMounting plate depth-adjustable (EF006054)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature namePole fastening (EF009582)
Feature valueNo
Feature nameDepth (EF000049)
Feature value175 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value310 mm

DATASHEET - PDF

Title
Size
Type
020139 EN_020103.pdf
541 Kbytes
