LEGRANDXL3 160-400 ENERGY DISTRIBUTION CABINETS020123 LEGRAND XL3 400 SIDE CELL 600H

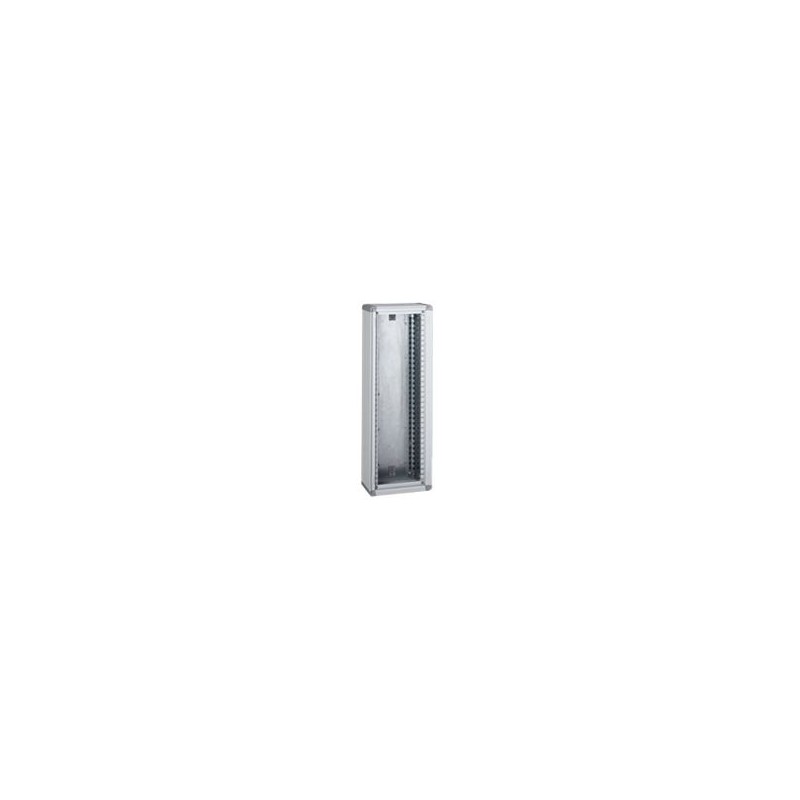

LEGRAND 020123 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020123 LEGRAND XL3 400 SIDE CELL 600H

Code: 020123

Manufacturer: LEGRAND

Description:

XL3 400 SIDE CELL 600H
XL3 400 CELL SIDE 600H
Cell side XL3 400 - for metal box ref. 201 03 - Alt. 600 - grey RAL 7035
XL³ 400 H600 Side Cell - Grey RAL 7035

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • LEGRAND > XL3 160-400 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 150,05 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Metal boxes - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door Cells external side - total Height: 600 mm - Height to caps cubrebornas: 550 mm - total Width: 310 mm - working Width: 250 mm - depth: 175 mm

General characteristics

XL3 400 - boxes and control cabinets - Suitable for devices up to 400 A - fire Resistance according to IEC 60695-2-11: 750 °C - Capacity: 24 modules per row. RAL 7035 (socket RAL 7004) - The door must be ordered separately - Supplied with studs, functional set in the bottom of the wardrobe, plate cable entry cut-out and accessories link (horizontal and vertical) - For information on resistance in specific environments, see the statement

ETIM for 020123 Cabinets and enclosures (EC000261)

Feature nameSuitable for wall built-in (EF007536)
Feature valueNo
Feature nameHeight (EF000040)
Feature value600 mm
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP43
Feature nameNumber of doors (EF000122)
Feature value1
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameMaterial quality (EF001257)
Feature valueOther
Feature nameNumber of locks (EF000123)
Feature value1
Feature namePitched roof (EF009278)
Feature valueNo
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameWith ventilation door (EF006279)
Feature valueNo
Feature nameWith glazed door (EF001089)
Feature valueNo
Feature nameWith rear door (EF007381)
Feature valueNo
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameMounting plate depth-adjustable (EF006054)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK08
Feature namePole fastening (EF009582)
Feature valueNo
Feature nameDepth (EF000049)
Feature value175 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value310 mm

DATASHEET - PDF

Title
Size
Type
020123 EN_020103.pdf
541 Kbytes
