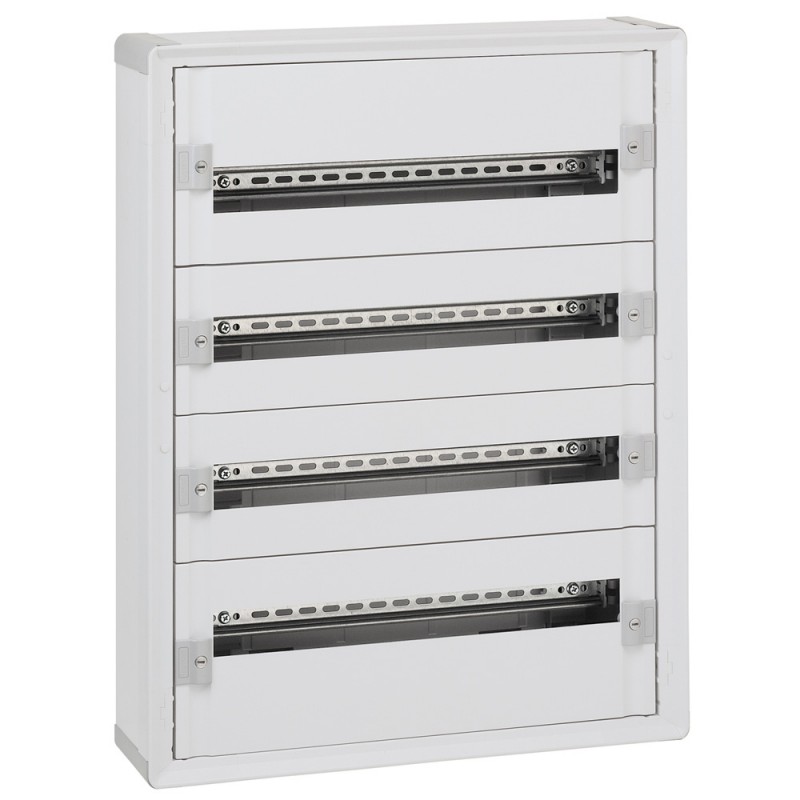

LEGRAND 020054 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020054 LEGRAND XL3 160 SUPER. AISL. 4 ROWS

Code: 020054

Manufacturer: LEGRAND

Description:

XL3 160 SUPER. AISL. 4 ROWS
Box distribution insulating XL3 160 - fully modular - 4 rows of 24 modules
XL³ 160 insulating distribution box - fully modular - 4 rows of 24mod

Categories:

  • Distribution boards > Small distribution board
  • LEGRAND > XL3 160-400 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 294,16 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Distribution box modular insulation, surface - Boxes to create montages of class II (or totally isolated) according to IEC 61439-1/3 - IP 43 - IK 07 with seal and door IP 40 - IK 07 with door IP 30 - IK 04 without door - Bracelets guide to wiring vertical - Support DPX3 160 - N. º of rows: 4 - N. º of modules: 96 - Height: 750 mm Width: 575 mm Depth: 147 mm

General characteristics

Cabinets installation on surface XL3 160 - distribution boxes with "ready to use" - Chassis removable equipped with profiles that are symmetrical - brass Bar for drivers of protection: 36 holes 1.5 to 10 mm? and holes, 2 x 35 mm? - Capacity of 24 modules per row - RAL 7035 - Are supplied complete with profiles and front panels. The doors are ordered separately - For creating assemblies certified IN accordance with IEC en 61439-1 - removable side Panels - top and bottom Panels removable and separable to insert plate cable gland adjustable

ETIM for 020054 Distribution boards (EC000214)

Feature nameHeight (EF000040)
Feature value750 mm
Feature nameInner depth (EF001131)
Feature value115 mm
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP43
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith lock (EF006306)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameNumber of rows (EF000266)
Feature value4
Feature nameCover model (EF009212)
Feature valueWith notch
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameBuilt-in depth (EF000218)
Feature value170 mm
Feature nameType of covering (EF000339)
Feature valueDoor
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value24
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameDepth (EF000049)
Feature value147 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value575 mm
