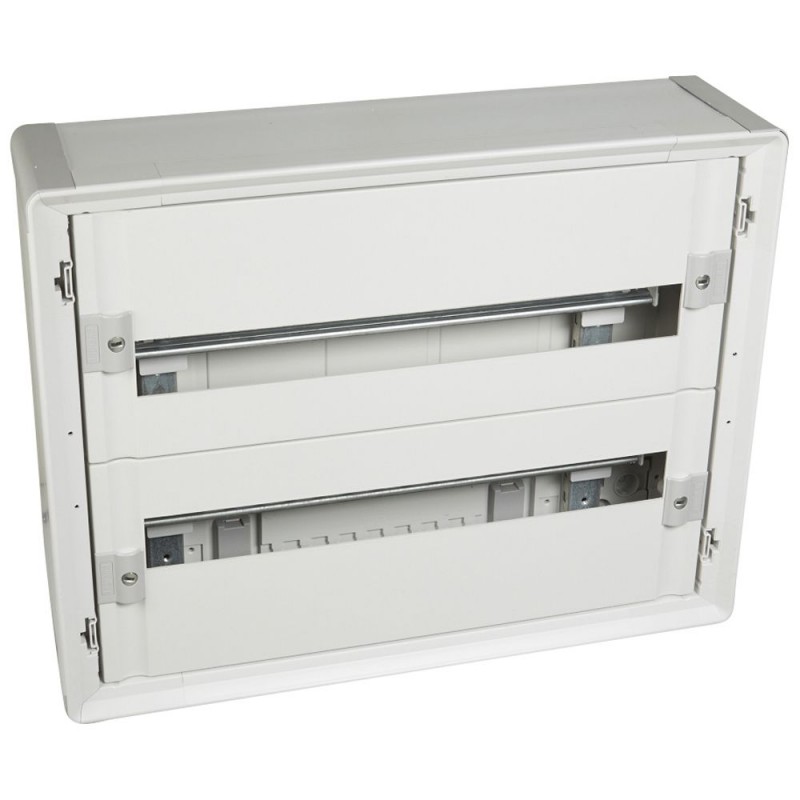

020052 LEGRAND XL3 160 SUPER. AISL. 2 ROWS
020052
LEGRAND
XL3 160 SUPER. AISL. 2 ROWS
Box distribution insulating XL3 160 - fully modular system - 2 rows of 24 modules
XL³ 160 insulating distribution box - fully modular - 2 rows of 24mod
Distribution boards > Small distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Distribution box modular insulation, surface - Boxes to create montages of class II (or totally isolated) according to IEC 61439-1/3 - IP 43 - IK 07 with seal and door IP 40 - IK 07 with door IP 30 - IK 04 without door - Bracelets guide to wiring vertical - Support DPX3 160 - N. º of rows: 2 - N. º of modules: 48 - Height: 450 mm Width: 575 mm Depth: 147 mmGeneral characteristics
Cabinets installation on surface XL3 160 - distribution boxes with "ready to use" - Chassis removable equipped with profiles that are symmetrical - brass Bar for drivers of protection: 36 holes 1.5 to 10 mm? and holes, 2 x 35 mm? - Capacity of 24 modules per row - RAL 7035 - Are supplied complete with profiles and front panels. The doors are ordered separately - For creating assemblies certified IN accordance with IEC en 61439-1 - removable side Panels - top and bottom Panels removable and separable to insert plate cable gland adjustable| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 450 mm |
| Inner depth (EF001131) | 115 mm |
| Transparent cover/door (EF006244) | No |
| Degree of protection (IP) (EF005474) | IP43 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 2 |
| Cover model (EF009212) | With notch |
| RAL-number (EF000116) | 7035 |
| Built-in depth (EF000218) | 170 mm |
| Type of covering (EF000339) | Optional |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| Width in number of modular spacings (EF002950) | 24 |
| EMC-version (EF001062) | No |
| Depth (EF000049) | 147 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 575 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 020052 EN_020052.pdf | 359 Kbytes |
 |
