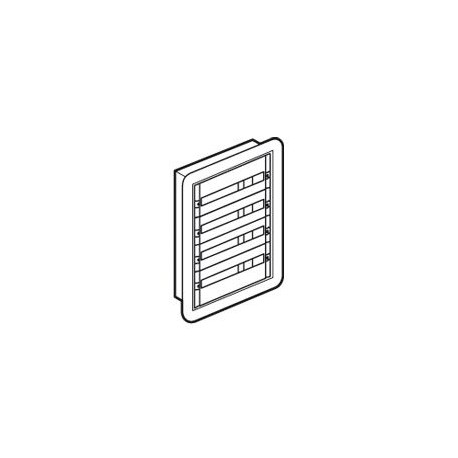

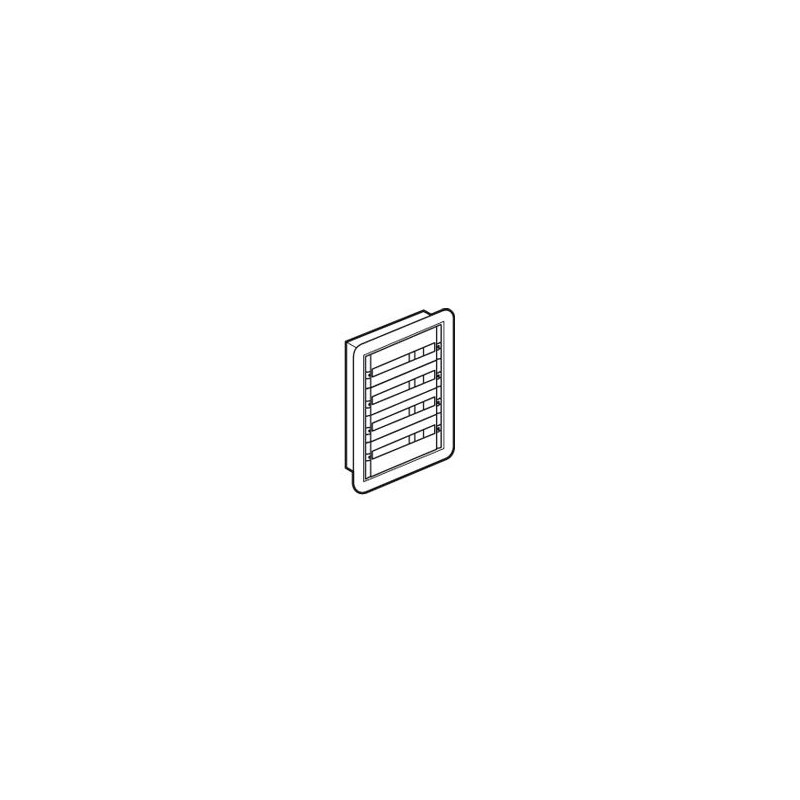

020014 LEGRAND XL3 160 RECESSED METAL 4 ROWS

Code: 020014

Manufacturer: LEGRAND

Description:

XL3 160 RECESSED METAL 4 ROWS
XL3 160 FLUSH-MOUNTED METAL 4 ROWS
Box distribution recessed XL3 160 - fully modular - 4 rows - 24 mód.
Recessed distribution box XL³ 160 - modular - 4 rows - 24mod

Categories:

  • Distribution boards > Small distribution board
  • LEGRAND > XL3 160-400 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 364,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Distribution box modular recessed - Number of rows: 4 - Number of modules: 96 - Height front: 845 mm - front Width: 670 mm - Height of box: 790 mm - Width box: 617 mm

General characteristics

XL3 160 - 24 modules per row - distribution boxes flush-mounted "ready to use" - fire Resistance according to IEC 60695-2-11: 750 °C - recessed box metal - chassis removable profiles mounted - brass bar for drivers protection fitted: 36 holes 1.5 to 10 mm2, 2 holes 35 mm2 - frame bezel and plate insulators - Fund of recess: 100 mm min. - Capacity: 24 modules per row - RAL 7035 - doors are flat, must be ordered separately - Suitable for DPX3 160 - IP 40 - IK 08 with door IP 30 - IK 04 without door

ETIM for 020014 Distribution boards (EC000214)

Feature nameHeight (EF000040)
Feature value750 mm
Feature nameInner depth (EF001131)
Feature value93 mm
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP43
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valueSteel
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueFlush mounted
Feature nameNumber of rows (EF000266)
Feature value4
Feature nameCover model (EF009212)
Feature valueWith notch
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameBuilt-in depth (EF000218)
Feature value140 mm
Feature nameType of covering (EF000339)
Feature valueOptional
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameWidth in number of modular spacings (EF002950)
Feature value24
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameDepth (EF000049)
Feature value100 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value575 mm
