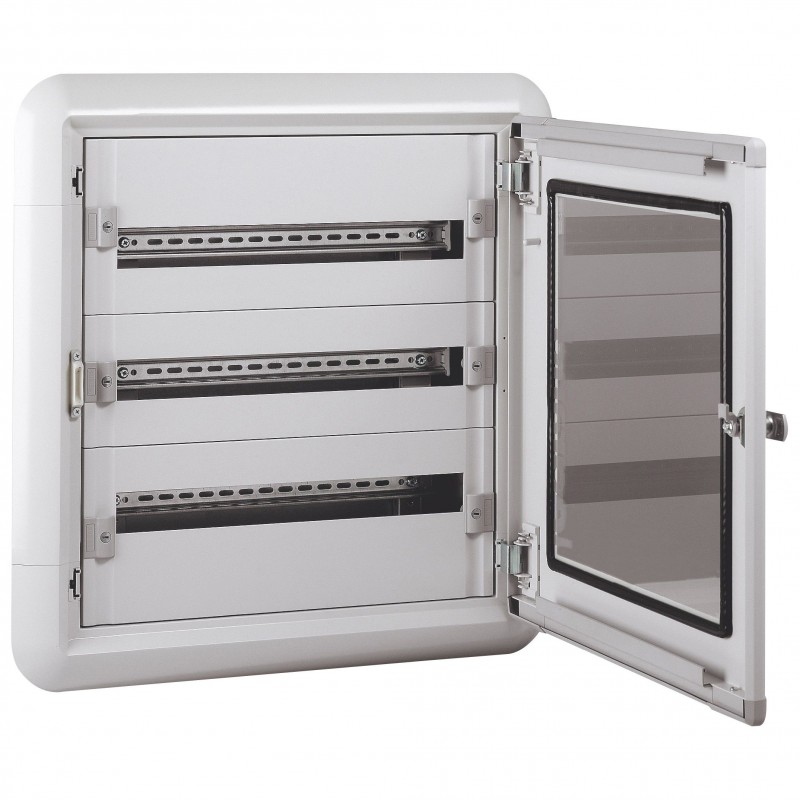

020013 LEGRAND XL3 160 FLUSH-MOUNTED METAL 3 ROWS
020013
LEGRAND
XL3 160 FLUSH-MOUNTED METAL 3 ROWS
Box distribution recessed XL3 160 - fully modular - 3 rows - 24 mód.
Recessed distribution box XL³ 160 - modular - 3 rows - 24mod
Distribution boards > Small distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Distribution box modular recessed - Number of rows: 3 - Number of modules: 72 - Height front: 695 mm - front Width: 670 mm - bed Height: 640 mm - Width box: 617 mmGeneral characteristics
XL3 160 - 24 modules per row - distribution boxes flush-mounted "ready to use" - fire Resistance according to IEC 60695-2-11: 750 °C - recessed box metal - chassis removable profiles mounted - brass bar for drivers protection fitted: 36 holes 1.5 to 10 mm2, 2 holes 35 mm2 - frame bezel and plate insulators - Fund of recess: 100 mm min. - Capacity: 24 modules per row - RAL 7035 - doors are flat, must be ordered separately - Suitable for DPX3 160 - IP 40 - IK 08 with door IP 30 - IK 04 without door| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 600 mm |
| Inner depth (EF001131) | 93 mm |
| Transparent cover/door (EF006244) | No |
| Degree of protection (IP) (EF005474) | IP43 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Steel |
| With lock (EF006306) | No |
| Mounting method (EF000003) | Flush mounted |
| Number of rows (EF000266) | 3 |
| Cover model (EF009212) | With notch |
| RAL-number (EF000116) | 7035 |
| Built-in depth (EF000218) | 140 mm |
| Type of covering (EF000339) | Optional |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | No |
| Width in number of modular spacings (EF002950) | 24 |
| EMC-version (EF001062) | No |
| Depth (EF000049) | 100 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 575 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 020013 EN_020013.pdf | 702 Kbytes |
 |
