LEGRANDXL3 160-400 ENERGY DISTRIBUTION CABINETS020004 LEGRAND XL3 160 SUPERF METAL 4 ROWS

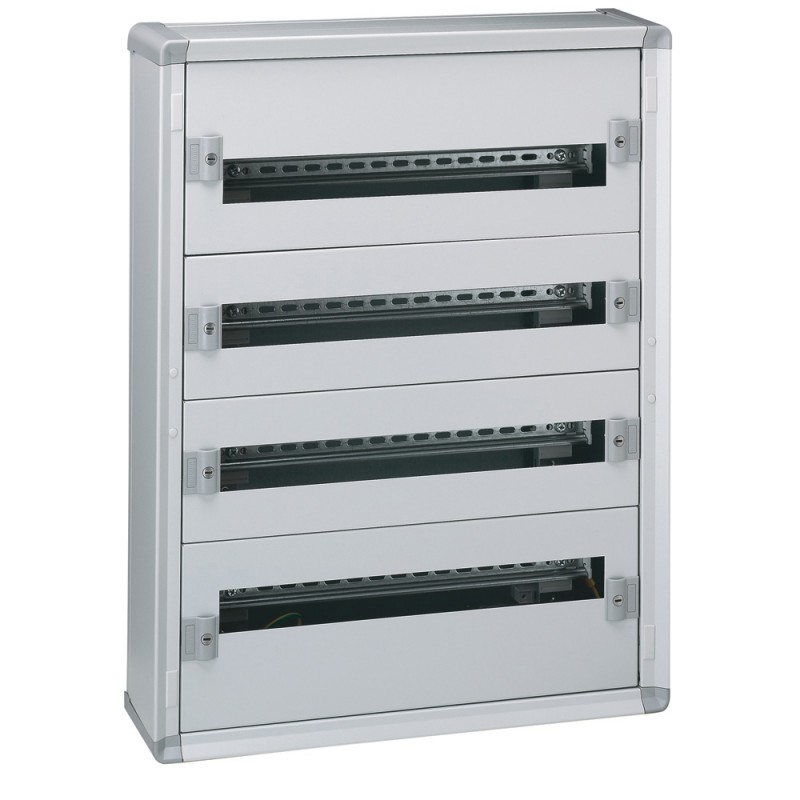

LEGRAND 020004 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

020004 LEGRAND XL3 160 SUPERF METAL 4 ROWS

Code: 020004

Manufacturer: LEGRAND

Description:

XL3 160 SUPERF METAL 4 ROWS
Box, distribution metal XL3 160 - fully modular - 4 rows of 24 modules
XL³ 160 metal distribution box - fully modular - 4 rows of 24mod

Categories:

  • Distribution boards > Small distribution board
  • LEGRAND > XL3 160-400 ENERGY DISTRIBUTION CABINETS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 343,04 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Distribution box modular metal surface - Suitable for DPX3 160 - Apparatus modular Vistop less than or equal to 125 In - Number of rows: 4 - Number of modules: 96 - Height: 750 mm Width: 575 mm Depth: 147 mm

General characteristics

XL3 160 - distribution boxes metal "ready to use" - fire Resistance according to IEC 60695-2-11: 750 °C - Chassis removable with profiles that are symmetrical mounted - brass Bar for drivers protection fitted: 36 holes 1.5 to 10 mm2 and 2 holes 35 mm2 - Capacity: 24 modules per row - RAL 7035 - Supplied complete with profiles and caps cubrebornas - doors must be ordered separately - Allow you to perform sets certified according to UNE en 61439-2 and -3 - IP 43 - IK 08 with seal and door, IP 40 - IK 08 with door IP 30 - IK 07 without door - Sides, removable side. Top and bottom removable and separable to insert the plate cable entry cut-out (order separately)

ETIM for 020004 Distribution boards (EC000214)

Feature nameHeight (EF000040)
Feature value750 mm
Feature nameInner depth (EF001131)
Feature value115 mm
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP43
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valueSteel
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameNumber of rows (EF000266)
Feature value4
Feature nameCover model (EF009212)
Feature valueWith notch
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameBuilt-in depth (EF000218)
Feature value170 mm
Feature nameType of covering (EF000339)
Feature valueOptional
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameWidth in number of modular spacings (EF002950)
Feature value24
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameDepth (EF000049)
Feature value147 mm
Feature nameColour (EF000007)
Feature valueGrey
Feature nameWidth (EF000008)
Feature value575 mm

DATASHEET - PDF

Title
Size
Type
020004 EN_020002.pdf
515 Kbytes
